Same model may have multiple batches, images only for reference.

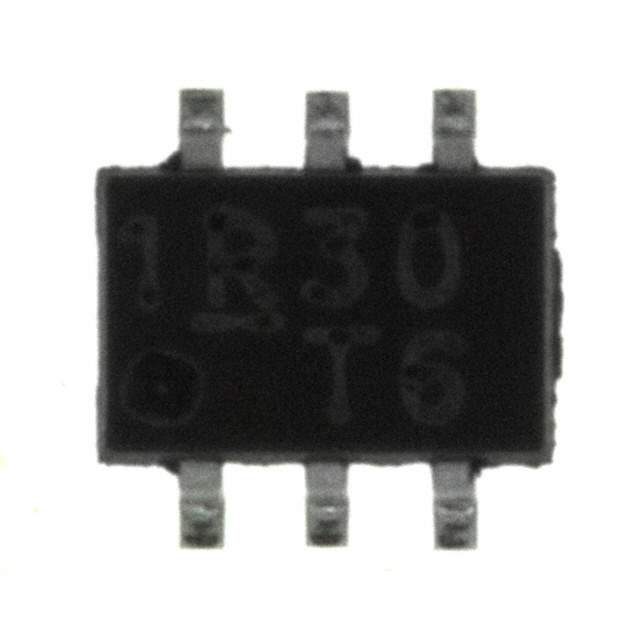

PQ1R30 Real Image
Same model may have multiple batches, images only for reference.

PQ1R30

Part No PQ1R30
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3V 0.15A SOT23L-6
Datasheet
PQ1R30 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3V
Dropout Voltage-Max 0.4V @ 150mA
Output Current 150mA
Operating Supply Current 350μA
PSRR 55dB (400Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3V
Voltage - Dropout (Typical) 0.29V @ 150mA
Mounting SMD (SMT)
Case / Package SOT-23L-6
Win Source Part Number 106709-PQ1R30
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ1R30 CAD Model

Description

The PQ1R30 from Sharp Microelectronics is a positive fixed voltage regulator with a voltage dropout of 0.29V @ 150mA.

  • Voltage Dropout: 0.29V @ 150mA
  • Maximum Input Voltage: 16V
  • Output Current: 150mA
  • Output Voltage: 3V
  • Enable Control: Yes
  • Case/Package: SOT-23L-6
  • Operating Temperature Range: -30°C to 80°C
  • PSRR: 55dB (400Hz)
  • Protection Features: Over-current and Over-temperature
  • Packaging: Reel
