PQ20WZ1UJ00H Sharp Microelectronics
Same model may have multiple batches, images only for reference.

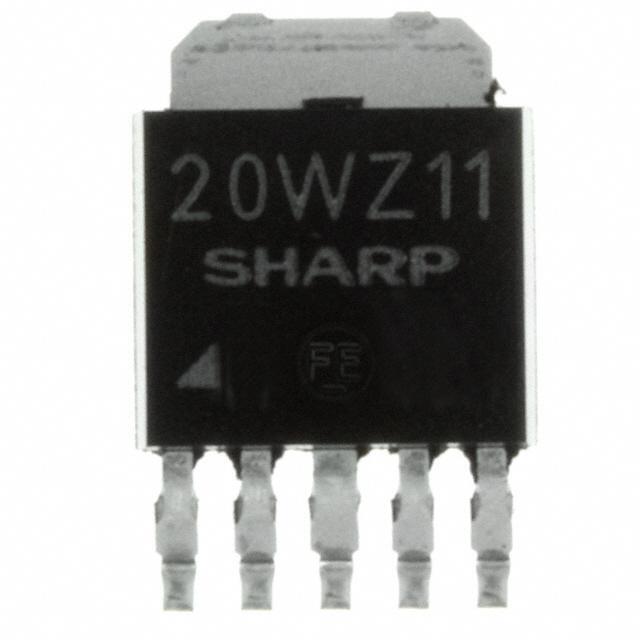

PQ20WZ1UJ00H

Part No PQ20WZ1UJ00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A SC63
Datasheet
PQ20WZ1UJ00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 3V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 3 V to 20 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026852-PQ20WZ1UJ00H
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ20WZ1UJ00H CAD Model

Description

The Sharp Microelectronics PQ20WZ1UJ00H is a positive adjustable regulator with a maximum input voltage of 24V.

  • Output: Single adjustable from 3V to 20V
  • Maximum Output Voltage: 20V
  • Output Current: 1A
  • Dropout Voltage: 0.5V @ 500mA
  • Operating Supply Current: 8mA
  • PSRR: 60dB @ 120Hz
  • Protection Features: Over current and over temperature
  • Temperature Range: -20°C to 80°C
  • Package: SC-63
  • Lifecycle Status: Obsolete (EOL)
  • Popularity: Medium
