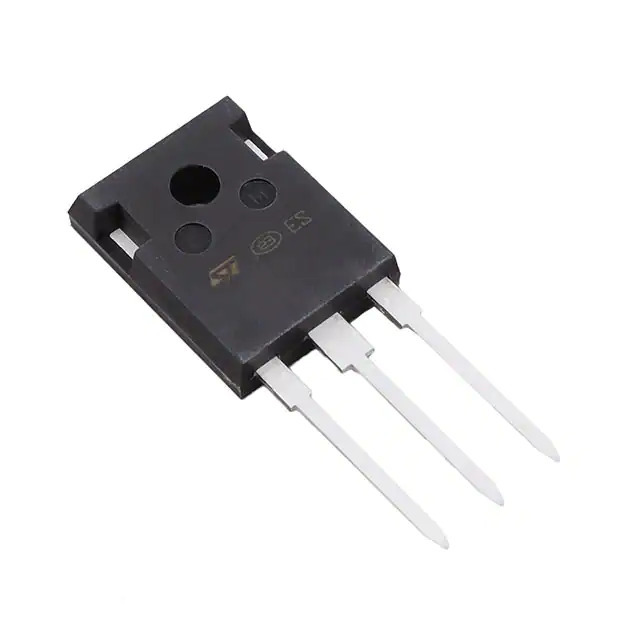

The SCTWA30N120 is a state-of-the-art Silicon Carbide (SiC) Power MOSFET presented by STMicroelectronics, a global semiconductor leader. This high-performance MOSFET is designed to meet the efficiency and reliability demands of modern high-power applications, including electric vehicles, renewable energy systems, and power supplies.

Key Features

• High Voltage Rating: With a drain-source voltage (V<sub>DS) of 1200V, the SCTWA30N120 is well-suited for high voltage applications, providing designers with a robust and efficient switching solution.
• Low On-Resistance: The device features an ultra-low on-resistance (R<sub>DS(on)) of 30 mΩ, minimizing conduction losses and enhancing overall system efficiency.
• Fast Switching Speed: The fast intrinsic diode with minimal reverse recovery charge (Q<sub>rr) ensures high-speed switching capabilities, which is critical for reducing switching losses and improving performance in power conversion systems.
• High-Temperature Operation: Capable of operating at junction temperatures up to 200°C, the SCTWA30N120 ensures reliable performance even under extreme conditions, making it ideal for demanding applications.

Advantages

The use of Silicon Carbide in the SCTWA30N120 provides several advantages over traditional silicon MOSFETs. SiC offers higher efficiency, faster switching speeds, and can operate at higher temperatures. These characteristics lead to smaller, lighter, and more energy-efficient power systems.

Applications

• Electric Vehicle (EV) Inverters
• Solar Power Inverters
• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• High-Performance Power Converters

Product Summary

The SCTWA30N120 from STMicroelectronics represents a leap forward in power MOSFET technology, offering exceptional performance and efficiency for a wide range of high-power applications. Its robust design and Silicon Carbide construction make it a go-to choice for engineers looking to push the boundaries of power density, efficiency, and reliability in their designs.
