The STFI13NK60Z is a high-performance N-channel Power MOSFET produced using STMicroelectronics' advanced SuperMESH™ technology, which combines the benefits of reduced on-resistance, reduced gate charge, and enhanced switching performance with the ruggedness and reliability that are hallmarks of ST's MOSFET portfolio. This Power MOSFET is designed to address a wide range of applications that demand high efficiency and power density.

Key Features

• High Voltage Capability: The device is rated for a maximum voltage of 600 V, making it suitable for high-voltage applications.
• Low On-Resistance: With a typical on-resistance of just 0.25 ohms, the STFI13NK60Z ensures minimal power loss and improved efficiency in your circuit designs.
• High Current Handling: This MOSFET can handle continuous currents up to 11 A, allowing for robust performance in demanding situations.
• Improved Gate Charge: The device features a low gate charge, which enhances its switching performance and reduces switching losses.
• 100% Avalanche Tested: Each unit is rigorously tested to guarantee performance under extreme conditions, ensuring reliability and durability.
• Zener-protected: The MOSFET is equipped with a built-in Zener diode for gate-to-source protection, offering an extra layer of security against overvoltage conditions.

Applications

The versatility of the STFI13NK60Z allows it to be used in a broad spectrum of electronic applications. These include Switch Mode Power Supplies (SMPS), lighting applications such as LED drivers, high-efficiency converters, and motor control circuits. Its robustness also makes it an ideal choice for automotive environments and industrial applications where reliability is critical.

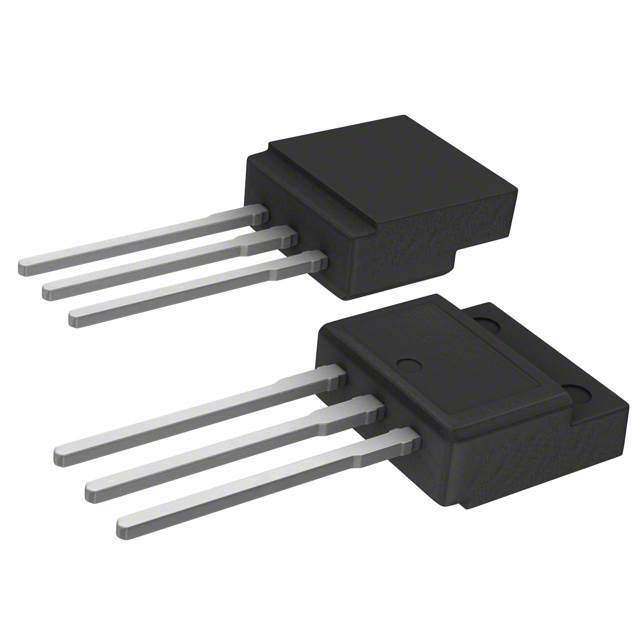

Package Details

The I²PAKFP (also known as TO-262) package of the STFI13NK60Z ensures a compact footprint while allowing for effective heat dissipation. It is designed for easy mounting on a printed circuit board, which is crucial for applications where space is at a premium.
