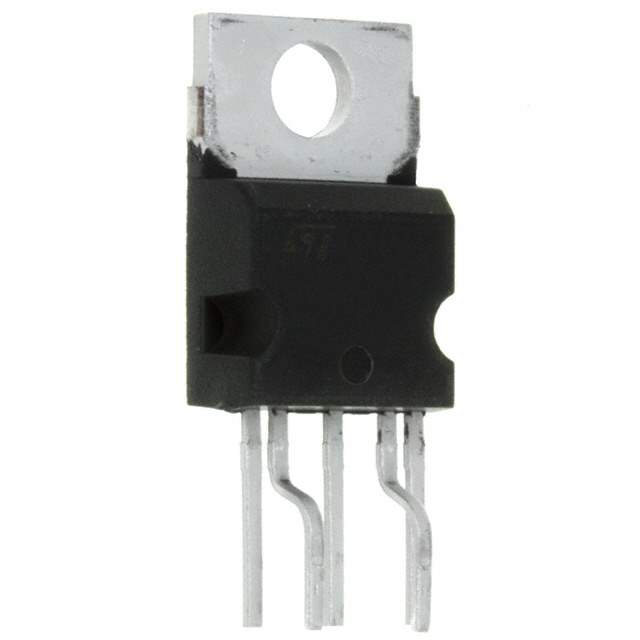

STMicroelectronics VIPER100A(022Y) - High-Voltage Converter

The VIPER100A(022Y) from STMicroelectronics is a robust, high-performance switched-mode power supply (SMPS) integrated circuit designed for a wide range of applications. This versatile component is ideal for designers looking to create efficient and compact power solutions in consumer electronics, industrial control systems, and home appliances.

At the heart of the VIPER100A(022Y) is a powerful high-voltage power MOSFET with an 800V avalanche-rugged technology, which ensures reliable operation even under harsh conditions. This integrated circuit features a fixed 60 kHz switching frequency with a jittered version for lower EMI emissions, making it suitable for noise-sensitive applications.

One of the key advantages of the VIPER100A(022Y) is its ability to work directly from the rectified mains, eliminating the need for a bulky and expensive step-down transformer. This allows for the design of compact power supplies with a minimal component count, reducing both size and cost.

The VIPER100A(022Y) also includes several protection features to enhance the safety and longevity of the end application. It offers overvoltage, overload, and thermal shutdown protections, along with a soft-start function to minimize inrush current during startup. These features not only protect the IC itself but also safeguard the surrounding components and the device it powers.

Furthermore, this IC supports both isolated and non-isolated topologies, providing flexibility in design. Its current-mode PWM controller with built-in error amplifier and compensation network makes feedback loop design straightforward, ensuring stable operation across different loads and input conditions.

For designers looking to meet stringent energy-saving standards, the VIPER100A(022Y) offers low standby power consumption. This is particularly important in applications where energy efficiency is a priority, such as in smart home devices and energy management systems.

In conclusion, the VIPER100A(022Y) from STMicroelectronics is a highly reliable, efficient, and versatile solution for a wide array of power supply designs. Its high-voltage capability, built-in protections, and energy-saving features make it an excellent choice for designers aiming to create compact, robust, and efficient power supplies.
