The VN7040AJTR from STMicroelectronics is a robust, high-side driver integrated circuit designed to control automotive applications. It is part of the VIPower M0-7 series and is specifically engineered to drive a wide range of loads, including lamps, solenoids, and resistive loads. This device is particularly well-suited for applications that require high reliability and performance under harsh conditions.

Key Features

• High-Side Switch: The VN7040AJTR operates as a high-side switch, which allows it to efficiently control the power supply to the load.
• Current Control: With an on-state resistance of just 40 mOhms, it can deliver a continuous current of up to 15A, making it suitable for high-current applications.
• Thermal Protection: The device includes overtemperature protection, which ensures the IC does not exceed its maximum operating temperature, thereby safeguarding the system from thermal damage.
• Load Current Limitation: It also features active current limitation to prevent overload conditions, further enhancing the safety and longevity of the system.
• Diagnostic Functions: Built-in diagnostic functions provide feedback on the status of the load, the IC itself, and the system it is integrated into.
• Control and Flexibility: The VN7040AJTR can be controlled via a standard logic-level signal, offering ease of integration with microcontrollers and other control units.

Applications

The VN7040AJTR is highly versatile and finds its uses in a multitude of automotive applications, including but not limited to:

• Automotive interior lights
• Automotive exterior lights
• Engine control units
• Body control modules
• Smart junction boxes

Package and Quality

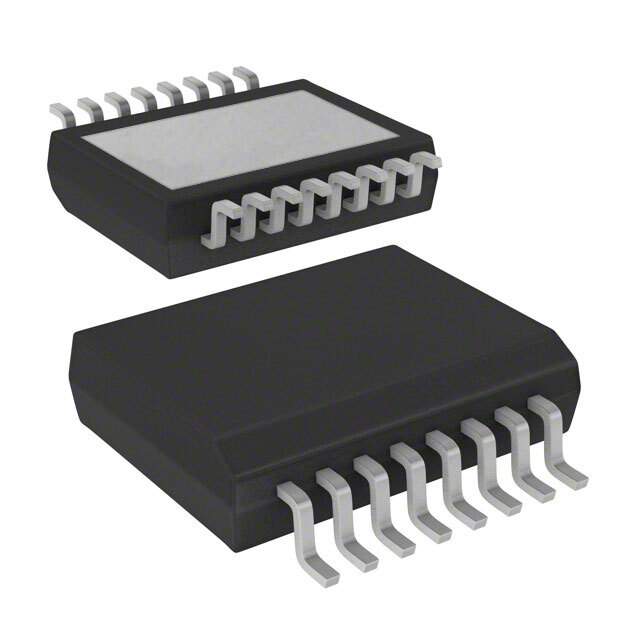

The VN7040AJTR is packaged in a compact, surface-mount PowerSSO-16 package, which is designed for space-constrained applications. It is qualified according to AEC-Q100 standards, ensuring automotive-grade quality and reliability.

In summary, the VN7040AJTR by STMicroelectronics is a powerful and reliable solution for high-side driving applications in the automotive industry, offering protection features, diagnostic capabilities, and high current control, all within a compact and robust package.
