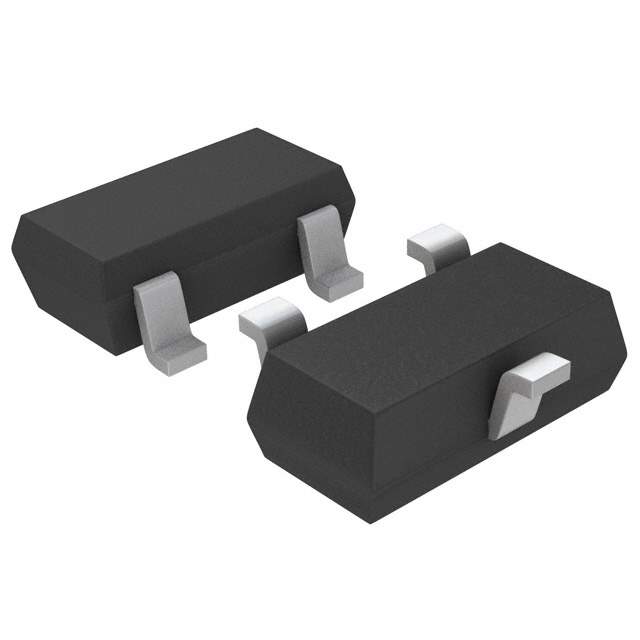

The TN5325K1 is a high voltage, N-channel enhancement-mode MOSFET manufactured by Supertex, Inc. It is designed for various high-voltage switching applications, providing robust performance and efficient operation. This MOSFET is commonly used in applications requiring high voltage handling and fast switching speeds.

Applications

• Solid-State Relays (SSRs): Switching high-voltage AC or DC loads.
• LED Lighting: Driving and controlling high-brightness LEDs.
• High-Voltage Power Supplies: Switching elements in high-voltage power converters.
• Plasma Displays: Driving plasma display panels.
• Piezoelectric Transducers: Driving high-voltage piezoelectric devices.
• High-Side Switches: General-purpose high-side switching applications.

Features

• High Voltage Operation: Suitable for applications with high voltage requirements.
• N-Channel MOSFET: Enhancement-mode operation for easy driving.
• Low Gate Charge: Enables fast switching speeds.
• Avalanche Energy Rated: Withstands transient voltage spikes.
• Low On-Resistance (RDS(on)): Minimizes power losses during conduction.
• Surface Mount Package: Facilitates automated assembly and compact designs.

Benefits

• High Efficiency: Reduces power losses in switching applications.
• Improved Reliability: Robust design ensures stable performance.
• Simplified Circuit Design: Easy to integrate into various circuits.
• Compact Design: Enables smaller and lighter electronic devices.
• Versatile Application: Suitable for a wide range of high-voltage applications.

Additional Details

The TN5325K1 is available in a surface-mount package, making it easy to integrate into automated assembly processes. Its high-voltage capabilities and robust design make it a reliable choice for high-voltage applications. For specific technical details, including voltage and current ratings, refer to the Supertex, Inc. datasheet for the TN5325K1.
