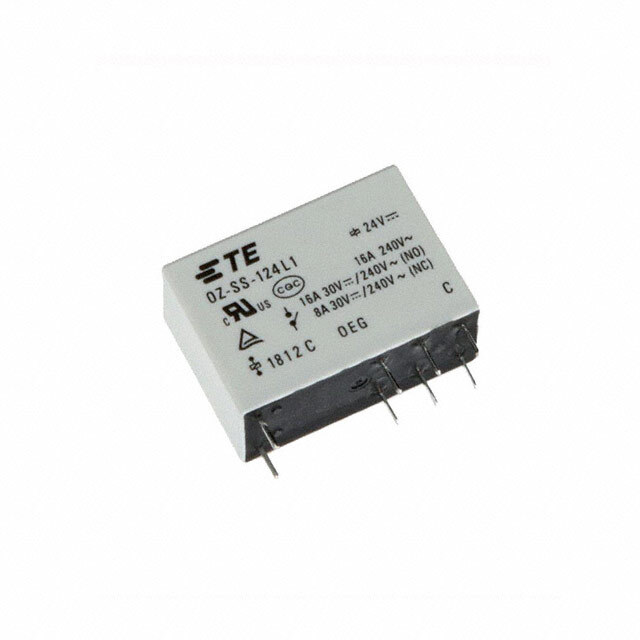

OZ-SS-124L1 TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SS-124L1

Part No OZ-SS-124L1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series OZ, OEG
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 240VAC, 24VDC - Max
Coil Current 21.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class A
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 8 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number OZ-SS
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 265079-OZ-SS-124L1
Ultra Librarian 3D Model Ultra Librarian OZ-SS-124L1 CAD Model

Description

The OZ series power relay from OEG is a high-quality component designed for power relay applications.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Resistance: 1.1 kOhms
  • Coil Voltage: 24VDC
  • Contact Rating: 16A
  • Switching Voltage: Up to 240VAC or 24VDC
  • Use: General-purpose
  • Mounting: Through-hole
  • Construction: Sealed and flux-protected
  • Operating Temperature Range: -30°C to 70°C
  • Status: Obsolete
  • Manufacturer: TE Connectivity
