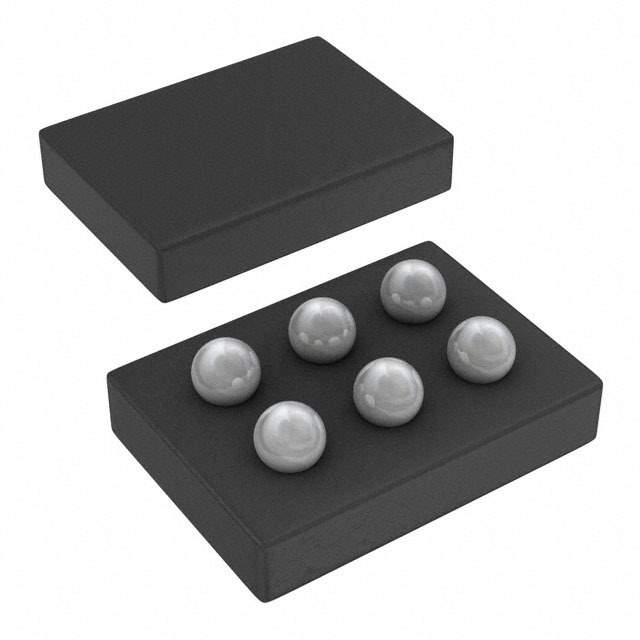

Product Overview: Texas Instruments CSD13306WT

The Texas Instruments CSD13306WT is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high performance in a compact and efficient package. This advanced power solution is ideal for a variety of applications, including but not limited to, power supply circuits, motor drives, and high-speed switching circuits.

Key Features

• Ultra-Low On-Resistance: The CSD13306WT boasts an exceptionally low on-resistance (R_DS(on)) which significantly reduces power losses and enhances overall efficiency, making it an excellent choice for power-sensitive applications.
• High Continuous Drain Current: With a high continuous drain current (I_D), this MOSFET can handle substantial current loads, ensuring reliable performance under demanding conditions.
• Advanced Packaging: Enclosed in a compact SON package, the CSD13306WT minimizes the footprint on printed circuit boards (PCBs) and allows for high-density circuit designs.
• Low Thermal Impedance: The device's low thermal impedance ensures efficient heat dissipation, which contributes to its reliability and longevity even in high-temperature environments.
• Fast Switching Speeds: Designed for applications requiring high-speed switching, the CSD13306WT provides swift transitions that contribute to reduced switching losses.

Applications

The versatility of the CSD13306WT allows it to be integrated into a wide range of electronic systems. Some of the common applications include:

• DC/DC Converters
• Load Switches
• Power Management Solutions
• Synchronous Buck Converters
• Point of Load (POL) Modules

Technical Specifications

The CSD13306WT is a testament to Texas Instruments' commitment to providing innovative and reliable power management solutions. Its combination of efficiency, power handling, and compact design makes it an excellent choice for modern electronic applications.
