Product Overview: Texas Instruments CSD16322Q5C

The Texas Instruments CSD16322Q5C is a state-of-the-art N-Channel NexFET™ power MOSFET that offers industry-leading performance for a wide range of power management applications. This high-efficiency, low on-resistance device is designed to minimize losses in power conversion systems and is suitable for both synchronous and non-synchronous buck regulators.

Key Features

• Low On-Resistance: With a typical R_DS(on) of just 8.9 mΩ at V_GS = 10V, the CSD16322Q5C provides exceptional efficiency, reducing energy waste and heat generation.
• High Continuous Drain Current: It supports a high continuous drain current (I_D) of 100 A, enabling it to handle high-power applications with ease.
• Fast Switching Performance: The device's fast switching characteristics make it ideal for high-frequency power conversion, which can lead to more compact and efficient power supply designs.
• Optimized Gate Charge: The optimized Q_g (total gate charge) helps in reducing switching losses without compromising on the R_DS(on) performance.

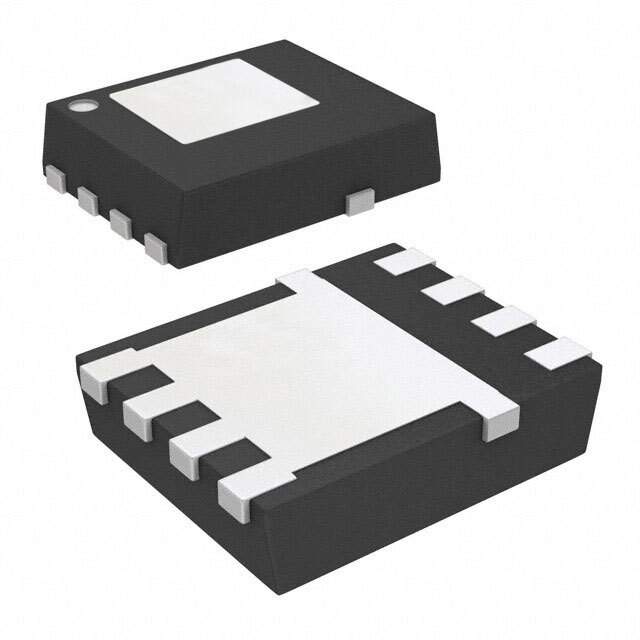

• Thermally Enhanced Package: Housed in a SON 5mm x 6mm plastic package, the CSD16322Q5C is designed for improved thermal performance, ensuring reliability under high current operation.

Applications

• DC/DC Power Supplies
• Motor Drives
• Power Tools
• Battery Management Systems
• Load Switches
• Synchronous Buck Converters

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the CSD16322Q5C is no exception. It is designed to meet the stringent requirements of the most demanding applications, ensuring long-term reliability and performance. The device also complies with RoHS standards, making it an environmentally responsible choice for power design engineers.

With its combination of low on-resistance, high current capability, and fast switching speeds, the CSD16322Q5C is an excellent choice for engineers looking to optimize their power system designs for both performance and efficiency.
