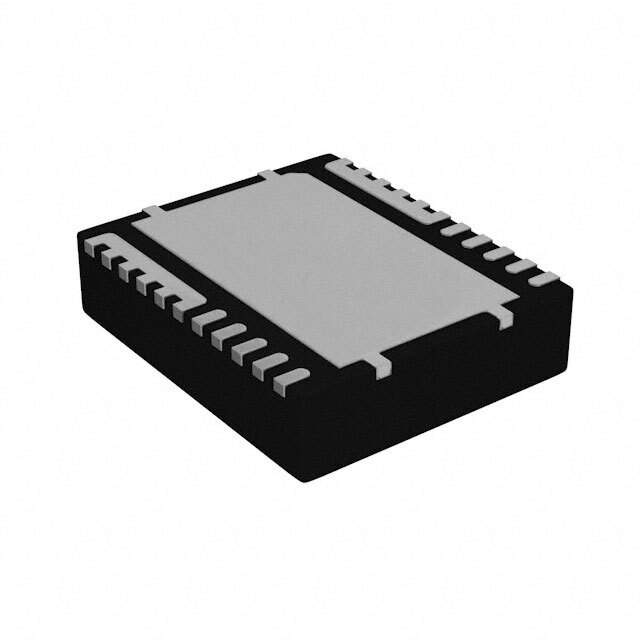

The CSD95378BQ5MT is a high-performance, synchronous buck NexFET™ power block from Texas Instruments designed to deliver exceptional power efficiency and density for a wide range of applications. This advanced power solution integrates two power MOSFETs in an optimized package that simplifies design and enhances thermal performance.

Key Features

• High Efficiency: The CSD95378BQ5MT boasts an impressive efficiency profile, which minimizes energy loss and heat generation, thereby enhancing system reliability and performance.
• Compact Footprint: With its small 5 mm x 6 mm outline, this power block can fit into tight spaces, making it ideal for space-constrained applications.
• Integrated Power Stages: The integration of high- and low-side MOSFETs simplifies design and reduces component count, contributing to a more compact and efficient power management system.
• Advanced Packaging: The SON 5x6 package with Power Clip technology allows for excellent thermal performance and low inductance, which is critical for high-frequency switching applications.
• Optimized Switching: The device is optimized for 5V gate drive applications, providing an excellent balance between switching and conduction losses.

Applications

The CSD95378BQ5MT is versatile and can be used in a variety of applications, including:

• Point of Load (POL) solutions
• Networking and telecommunication equipment
• Computing and servers
• Gaming consoles
• High-density power supplies

Design Resources

Texas Instruments provides extensive support for designers using the CSD95378BQ5MT, including reference designs, simulation models, and technical documentation to facilitate rapid design-in and development.

Conclusion

With its combination of high efficiency, compact size, and thermal performance, the CSD95378BQ5MT from Texas Instruments represents a state-of-the-art solution for modern power management challenges. Whether for POL applications, networking, or high-performance computing, this power block is engineered to meet the stringent requirements of today's electronic systems.
