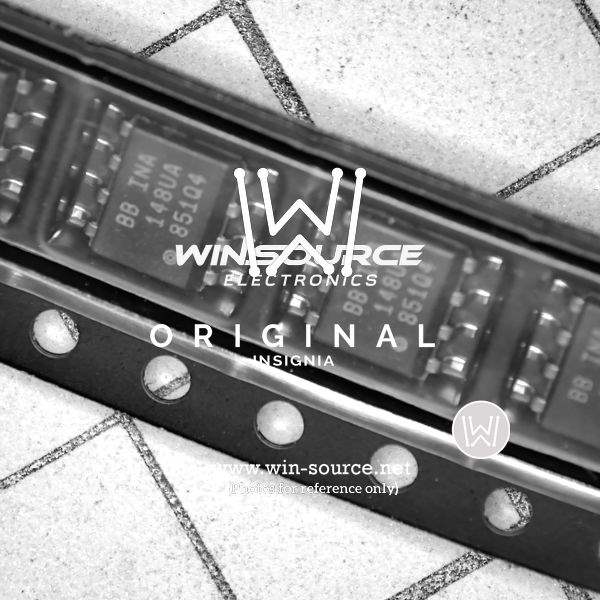

Introducing the INA148QDRQ1 Precision Amplifier

The INA148QDRQ1 is a high-precision, unity-gain difference amplifier from Texas Instruments, meticulously engineered to amplify small differential voltages in the presence of large common-mode signals. This automotive-qualified device is an ideal choice for a wide range of applications, including current monitoring, motor control, and battery management systems in the automotive industry.

Key Features

• High Common-Mode Rejection Ratio (CMRR): With an impressive CMRR of 100 dB (typical) at 25°C, the INA148QDRQ1 ensures accurate signal amplification even in environments with significant common-mode noise.
• Wide Common-Mode Range: The device operates over a wide common-mode voltage range, from -2V to +70V, making it versatile for various automotive applications.
• Robust Electrical Specifications: It boasts a wide supply range of ±2.25V to ±18V, with a quiescent current of just 850 µA, optimizing power consumption.
• High Accuracy: The INA148QDRQ1 offers a low offset voltage of ±250 µV (max) and an offset drift of ±3 µV/°C (max), ensuring precise measurements over temperature variations.

Quality and Reliability

As an automotive-grade product, the INA148QDRQ1 meets stringent quality standards, including AEC-Q100 qualification. It is also provided in a compact SOIC-8 package, making it suitable for space-constrained applications while providing reliable performance.

Applications

• Current Sensing in Electronic Power Steering
• Battery Management Systems
• Motor Control Units
• On-Board Chargers and DC/DC Converters

Easy Integration

The INA148QDRQ1 is designed for seamless integration into automotive systems. Its unity-gain configuration simplifies the design process, eliminating the need for external gain-setting components. Additionally, its pin-compatible upgrades allow for easy scalability and flexibility in design.

With its combination of precision, reliability, and ease of use, the INA148QDRQ1 from Texas Instruments stands out as a superior choice for automotive and industrial applications requiring high-accuracy differential voltage amplification.
