The SN65LVCP1412RLHT is a high-performance, multi-rate, dual-channel retimer from Texas Instruments designed to enhance signal integrity in applications that require high-speed data transmission. This retimer is part of the LVCP family, known for its low-voltage signaling with high noise immunity and low power consumption.

Key Features

• Multi-Rate Support: The device supports a wide range of data rates, making it suitable for various applications, including backplane, cable, and chip-to-chip interfaces.
• Dual-Channel Operation: It features two retimer channels, which can operate independently, providing flexibility and enabling the support of multiple data streams.
• Signal Conditioning: Advanced signal conditioning capabilities help to extend the reach of high-speed signals and improve signal integrity by compensating for inter-symbol interference (ISI).
• Low Power Consumption: Designed for energy efficiency, the SN65LVCP1412RLHT minimizes power usage, which is critical for high-density and battery-powered applications.

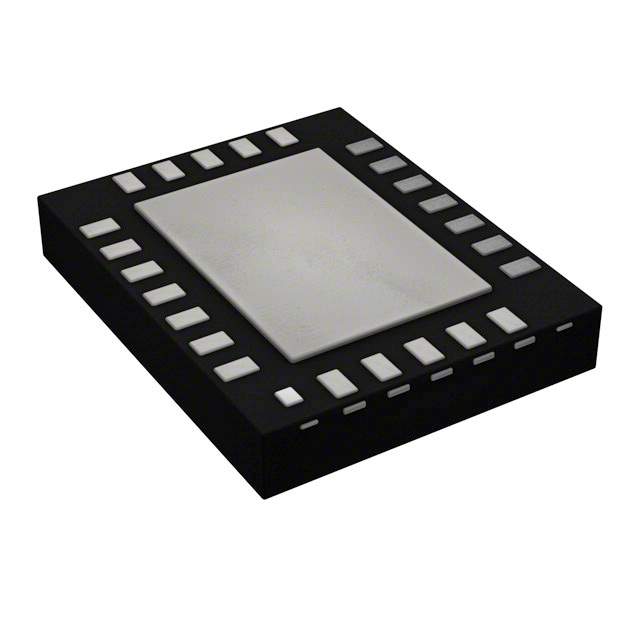

• Small Form Factor: Available in a compact QFN package, the retimer is ideal for space-constrained applications.

Applications

The SN65LVCP1412RLHT is suitable for a variety of high-speed communication applications, including:

• Data Center and Enterprise Networking
• High-Speed Backplanes and Cable Extensions
• Signal Repeaters and Redrivers
• Storage Systems and Servers
• Telecommunications Equipment

Technical Specifications

With its robust feature set and Texas Instruments' commitment to quality, the SN65LVCP1412RLHT is an excellent choice for designers looking to enhance their high-speed digital systems. Its versatility and performance make it a valuable component in any data-intensive application.
