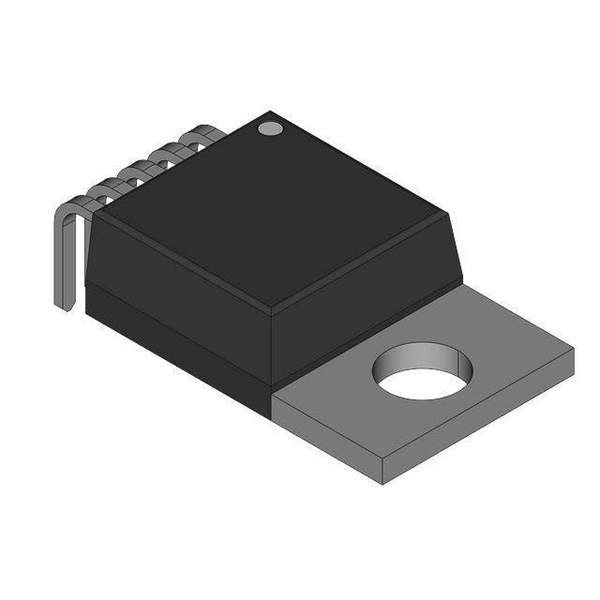

The LM2575HVT-12/LF03 from Texas Instruments is a highly efficient, step-down (buck) voltage regulator that provides all the active functions necessary for a power supply capable of driving a 1A load with excellent line and load regulation. This fixed-frequency switching regulator is designed to minimize the number of external components, simplifying the power supply design and ensuring ease of implementation.

Operating at a switching frequency of 52kHz, the LM2575HVT-12/LF03 significantly reduces the size of the external components, particularly the inductor and capacitors. This integrated circuit features a guaranteed 3% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring typically 80μA standby current.

The output voltage of this particular model is fixed at 12V, making it suitable for a wide range of applications, including but not limited to consumer electronics, office equipment, and industrial machinery. The thermal shutdown and current limit protection features ensure the longevity and reliability of both the regulator and the system it is used within.

Key features of the LM2575HVT-12/LF03 include:

• 3.3V, 5V, 12V, 15V, and adjustable output versions
• Adjustable version output voltage range: 1.23V to 37V (±4% max over line and load conditions)
• Specified 1A output current
• Wide input voltage range up to 60V
• Requires only 4 external components
• 52 kHz fixed frequency internal oscillator
• TTL shutdown capability
• Low power standby mode
• High efficiency
• Uses readily available standard inductors
• Thermal shutdown and current limit protection

In summary, the LM2575HVT-12/LF03 is a versatile and reliable component for a variety of power supply applications. Its ease of use, combined with the robust protection features, makes it an excellent choice for engineers and designers looking for a dependable voltage regulation solution.
