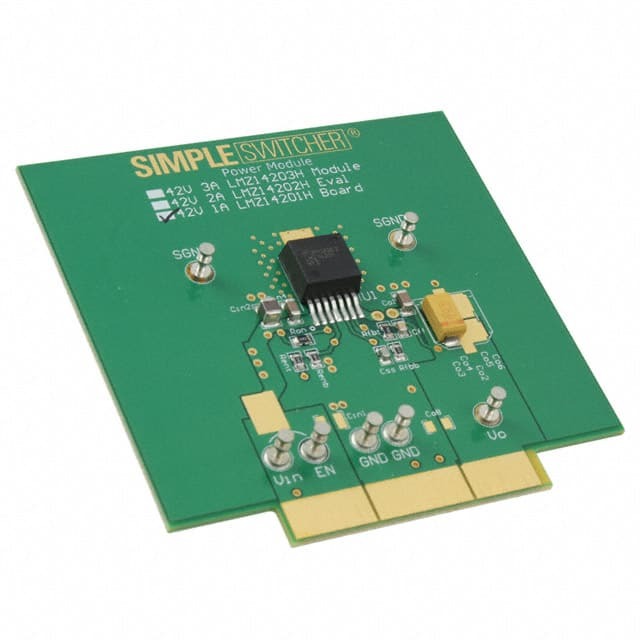

The LMZ14201HEVAL/NOPB is an evaluation board designed to demonstrate the capabilities of the LMZ14201H SIMPLE SWITCHER® power module from Texas Instruments (TI). This power module is a highly efficient, easy-to-use step-down DC-DC solution capable of driving a load up to 1A with exceptional power conversion efficiency, line and load regulation, and output accuracy.

Key Features

• Integrated Power Solution: The LMZ14201H integrates a DC-DC converter, inductor, and passives into a single low-profile package, simplifying design and reducing external component count.
• Wide Input Voltage Range: The module operates from an input voltage range of 6V to 42V, making it suitable for a variety of industrial and automotive applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 6V to accommodate different loads and applications.
• High Efficiency: The module's high efficiency reduces heat generation and improves system reliability.
• Thermal Performance: Enhanced thermal performance allows for operation in high-temperature environments.
• Protection Features: The LMZ14201H includes over-temperature and over-current protection, enhancing system safety and longevity.

Applications

• Telecommunications Infrastructure
• Industrial Equipment
• Automotive Systems
• Networking Equipment
• Consumer Electronics

Why Choose the LMZ14201HEVAL/NOPB?

The evaluation board for the LMZ14201H power module is an indispensable tool for engineers and designers looking to test and implement a compact, high-performance power solution in their applications. With its comprehensive set of features and protections, it ensures a reliable and efficient power supply. The LMZ14201HEVAL/NOPB simplifies the process of evaluating the LMZ14201H module, accelerating the development cycle and helping to bring products to market faster.

Additional Resources

For further information, including detailed technical specifications, application notes, and support documentation, please visit the Texas Instruments website or contact their support team.
