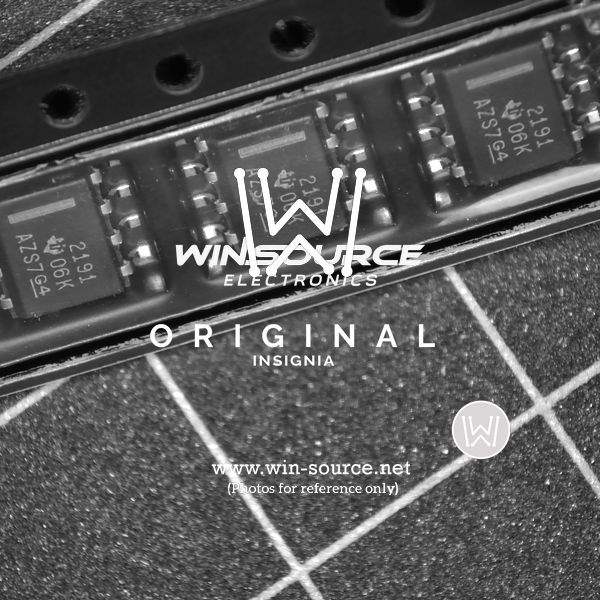

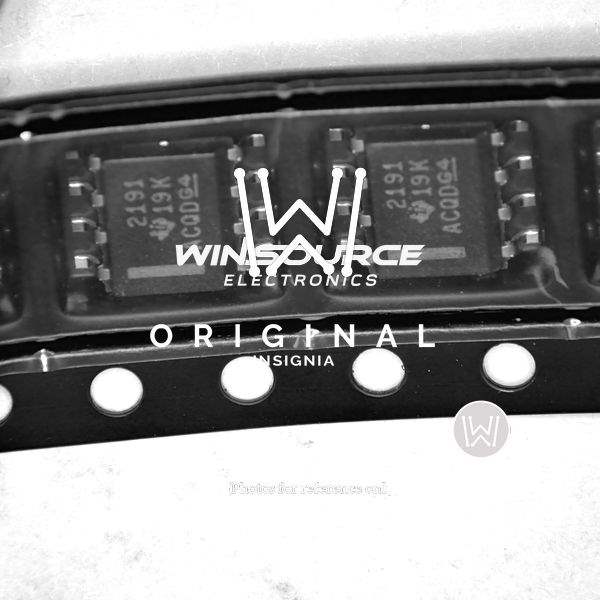

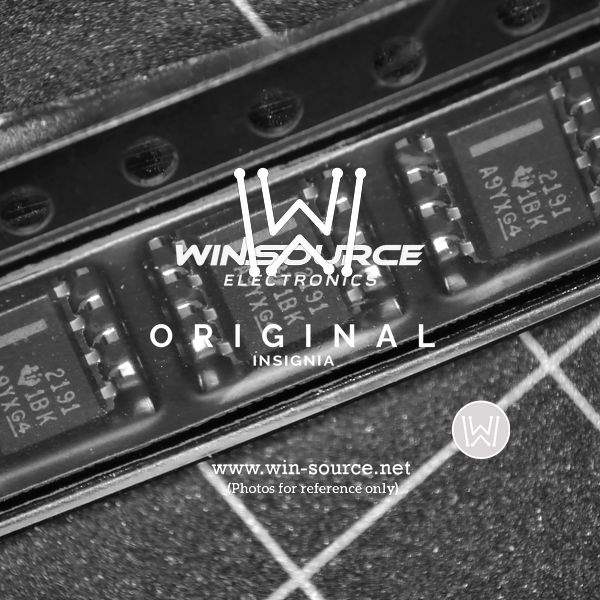

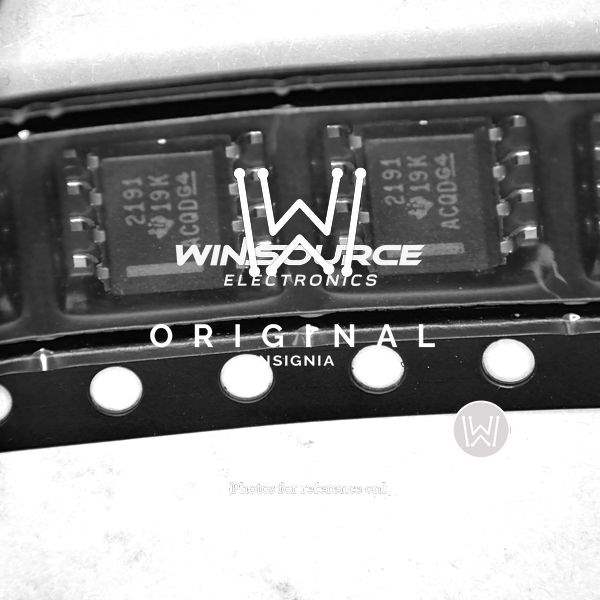

Product Overview: Texas Instruments OPA2191IDR

The OPA2191IDR from Texas Instruments is a precision operational amplifier (op-amp) that offers a perfect blend of low noise and low power consumption, packaged in a compact SOIC-8 form factor. This op-amp is designed to cater to a wide range of applications, including sensor signal conditioning, active filtering, and precision analog circuitry, making it a versatile choice for engineers and designers.

Key Features

• Low Offset Voltage: The OPA2191IDR boasts a low input offset voltage of just 25 µV (typical), which is ideal for applications requiring high accuracy and precision.
• Low Noise: With a noise density of 7.5 nV/√Hz at 1 kHz, this op-amp ensures a clean signal amplification, minimizing the impact of unwanted noise in sensitive applications.
• Wide Supply Range: The device operates over a wide supply range of ±2.25 V to ±18 V, or 4.5 V to 36 V in single-supply operation, providing flexibility in various power environments.
• Low Quiescent Current: It features a low quiescent current of 475 µA (typical) per channel, which makes it suitable for battery-powered and energy-efficient designs.
• High Common-Mode Rejection Ratio (CMRR): With a CMRR of 114 dB (typical), the OPA2191IDR offers excellent rejection of common-mode signals, ensuring the integrity of the differential signal amplification.
• Robust ESD Protection: The device comes with an electrostatic discharge (ESD) protection level of 4 kV (HBM), helping to safeguard the op-amp from static damage during handling and operation.

Applications

The OPA2191IDR is suitable for a diverse array of applications, including:

• Precision instrumentation
• Data acquisition systems
• Medical equipment
• Temperature sensing and control
• Analog filters
• Test and measurement equipment

With its precision specifications and reliable performance, the OPA2191IDR from Texas Instruments is an excellent choice for professionals looking for a high-quality operational amplifier that can handle demanding requirements while maintaining energy efficiency.
