The PCI1410AZGU is a high-performance PC Card controller designed by Texas Instruments. This device is specifically engineered to provide an interface between the high-speed PCI bus and PC Cards, commonly used in notebook computers and other portable devices. It supports both 16-bit PCMCIA cards and 32-bit CardBus cards, making it a versatile solution for expanding the capabilities of portable systems.

Key Features

• Compatibility: Fully compliant with the PCI Local Bus Specification Revision 2.2 and PC Card Standard Release 8.0, the PCI1410AZGU ensures broad compatibility with a wide range of hardware and software environments.
• Flexibility: The controller supports two independent card sockets for simultaneous operation, enabling the use of multiple PC Cards.
• Performance: With a 33 MHz PCI interface and support for burst transfer rates, the device ensures efficient data handling for high-speed applications.
• Power Management: Advanced power management features are built-in, including support for the PCI Power Management Interface Specification, which helps to reduce overall power consumption.
• ZV Port Support: The inclusion of a Zoomed Video (ZV) port allows for direct video capture to memory, which is especially beneficial for multimedia applications.

Applications

The PCI1410AZGU is ideal for a variety of applications such as:

• Notebook computers
• Portable computing devices
• Embedded systems
• Mobile communication devices

Technical Specifications

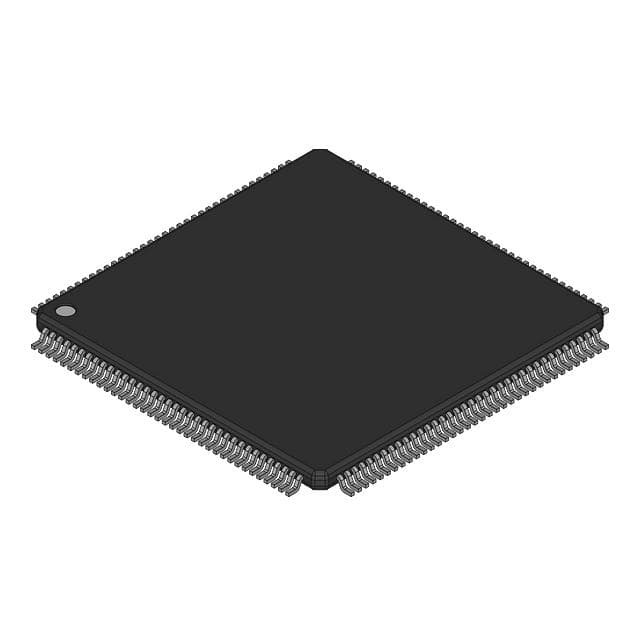

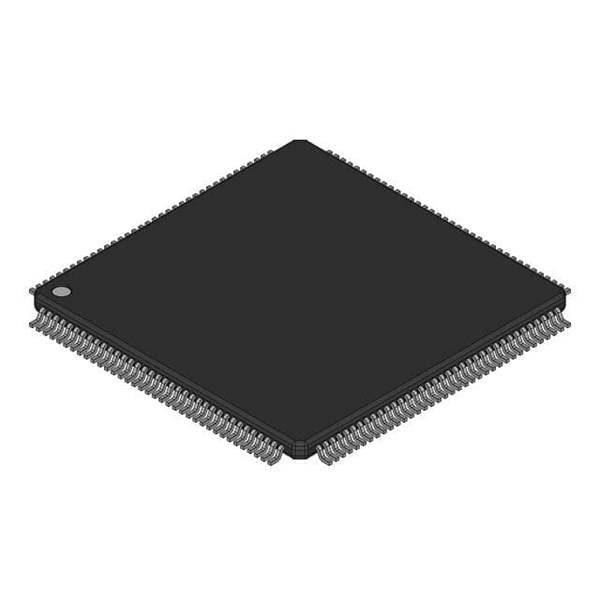

• Package: 208-Pin Plastic Thin Quad Flat Pack (TQFP)
• Operating Temperature Range: 0°C to 70°C
• Supply Voltage: 3.3V

The PCI1410AZGU from Texas Instruments represents a reliable and efficient solution for designers looking to integrate PC Card functionality into their systems. With its robust feature set and adherence to industry standards, it ensures seamless operation and compatibility with a wide array of PC Cards.
