The Texas Instruments PCI7420ZHK is a highly integrated and sophisticated multi-function controller that is designed to enhance connectivity and performance in a wide range of applications. This component is part of TI's extensive portfolio of interface solutions and provides seamless integration for both consumer and industrial products.

Key Features

• Multi-Function Interface: The PCI7420ZHK combines a dual-slot CardBus controller, an IEEE 1394a-2000 OHCI-Lynx controller, and a dual-port USB 2.0 host controller, offering a versatile solution for expanding the connectivity of your system.
• High-Speed Data Transfer: With support for high-speed data transfer rates, this product ensures efficient operation of peripherals such as external storage, printers, and cameras.
• Advanced Compatibility: The device is compatible with the PCI Local Bus Specification 2.2 and offers support for 32-bit bus mastering.
• Power Management: It includes power management features that comply with the ACPI 1.0 specification, helping to reduce overall power consumption.

Applications

• Notebook and Desktop PCs
• Docking Stations
• Industrial Control Systems
• Embedded Systems

Technical Specifications

• Interface: CardBus, IEEE 1394a, USB 2.0
• Bus Compatibility: 32-bit PCI 2.2
• Operating Voltage: 3.3V

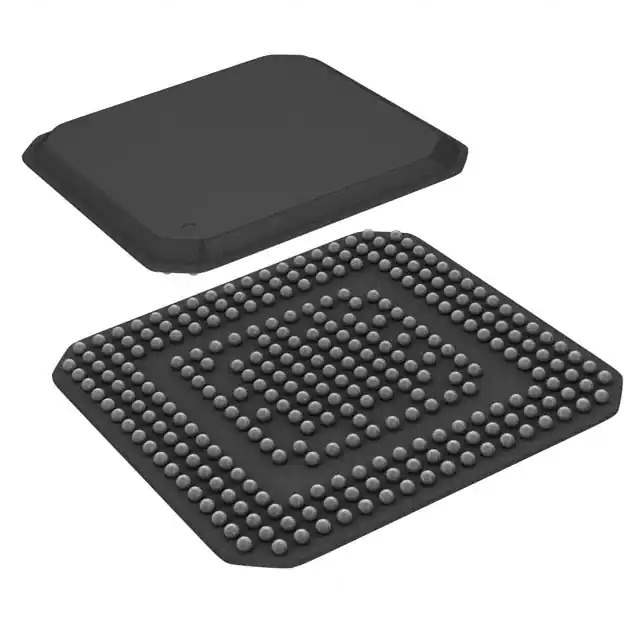

• Package: 209-Ball MicroStar BGA (ZHK)
• Operating Temperature Range: 0°C to 70°C

The Texas Instruments PCI7420ZHK is designed with reliability in mind, ensuring that your systems maintain a high level of performance and connectivity. Whether you are integrating this component into a new design or upgrading an existing system, the PCI7420ZHK provides a robust solution that can meet the demands of today's technology.
