Product Overview: SN74LV240ADGVR

The SN74LV240ADGVR from Texas Instruments is a high-performance, octal buffer/line driver designed to provide reliable operation for a wide range of digital applications. This integrated circuit is part of the LV family, which signifies its low-voltage operation and compatibility with TTL-level signals.

Key Features

• Logic Type: Octal Buffer/Line Driver with 3-state outputs
• Supply Voltage Range: 2.0V to 5.5V, accommodating various logic levels and providing design flexibility.
• Drive Capability: Capable of driving up to 24mA at the outputs, making it suitable for driving heavier loads.

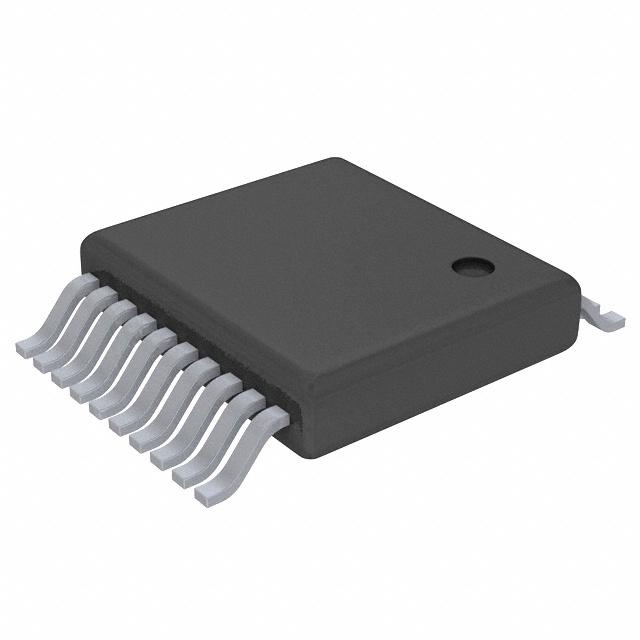

• Package: Comes in a compact TVSOP (Thin Shrink Small Outline Package) form factor under the part number SN74LV240ADGVR, which is ideal for space-constrained applications.
• Temperature Range: Operates over the industrial temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.

Applications

The SN74LV240ADGVR is versatile and can be used in various applications such as:

• Bus transceivers for data communication
• Memory address drivers
• Buffer memory address registers
• Driving capacitive loads

Performance and Quality

With Texas Instruments' commitment to quality, the SN74LV240ADGVR is designed to meet stringent standards, ensuring high reliability and performance. The device features balanced propagation delays and low-power consumption, making it an excellent choice for power-sensitive applications.

Ordering Information

The SN74LV240ADGVR is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For detailed ordering and shipping information, please refer to the Texas Instruments website or contact an authorized distributor.

Whether you are designing a new system or upgrading an existing one, the SN74LV240ADGVR octal buffer/line driver from Texas Instruments is a solid choice for ensuring robust and efficient digital signal processing.
