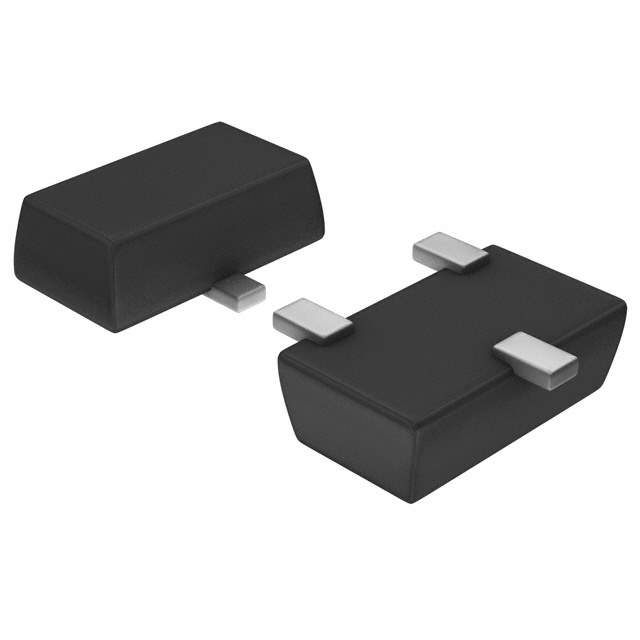

The SSM3J327R is a P-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Toshiba Semiconductor and Storage. It's designed for load switching and power management applications where low on-resistance and compact size are critical. This MOSFET is housed in a small SOT-23F package, making it ideal for space-constrained portable devices.

Applications:

• Load Switching
• Power Management in Portable Devices
• DC-DC Converters
• Battery Management Systems
• Power Amplifiers

Features:

• Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
• Small SOT-23F Package: Enables compact PCB designs.
• P-Channel MOSFET: Simplifies circuit design in certain applications.
• Logic Level Gate Drive: Allows direct drive from microcontrollers.
• RoHS Compliant: Environmentally friendly and lead-free.

Benefits:

• Increased Energy Efficiency: Low on-resistance reduces heat generation and improves overall system efficiency.
• Compact Design: The small SOT-23F package enables higher component density on the PCB.
• Simplified Circuit Design: P-channel configuration simplifies certain power management implementations.
• Direct Microcontroller Interface: Logic level gate drive eliminates the need for external gate drivers.
• Environmentally Responsible: RoHS compliance ensures adherence to environmental regulations.

Specifications:

The SSM3J327R typically features a drain-source voltage (VDS) of -30V and a continuous drain current (ID) of -1.8A. The on-resistance (RDS(on)) is typically around 0.15 ohms at a gate-source voltage (VGS) of -4.5V. The gate threshold voltage (VGS(th)) is typically around -1.5V. For precise electrical characteristics, thermal specifications, and recommended operating conditions, consult the official datasheet provided by Toshiba Semiconductor and Storage.

The SOT-23F package is designed for surface mount assembly. Proper thermal management is essential to ensure reliable operation, especially at higher currents and ambient temperatures. The device is sensitive to electrostatic discharge (ESD) and should be handled with appropriate precautions during assembly and testing.
