The SSM3J374R,LF is a P-channel MOSFET transistor that is part of the U-MOSVI series.

• Package: Tape and Reel
• Standard Package: 3,000
• Mounting Type: SMD (SMT)
• Technology: MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss): 30V
• Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
• Rds on (Max) @ Id, Vgs: 71mOhm @ 3A, 10V
• Vgs(th) (Max) @ Id: 2V @ 100μA
• Power Dissipation (Max): 1W (Ta)

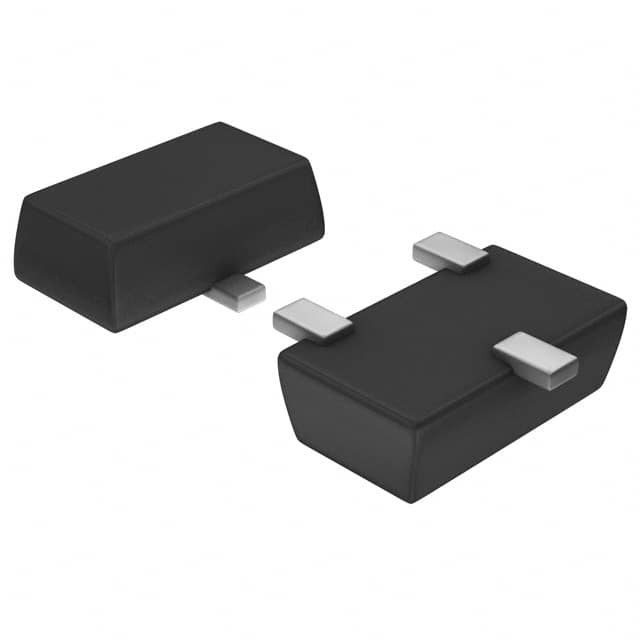

• Package / Case: SOT-23-3 Flat Leads
• Gate Charge (Qg) (Max) @ Vgs: 5.9 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 280 pF @ 15 V
• Vgs (Max): +10V, -20V
• Temperature Range - Operating: 150°C
