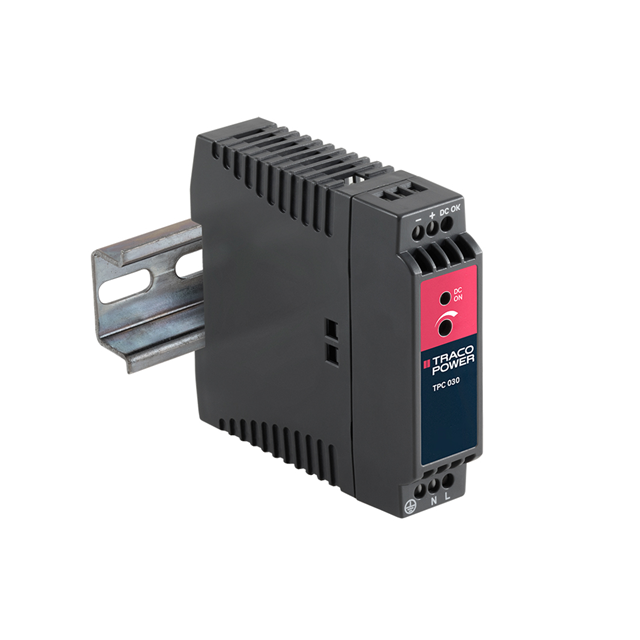

TPC 030-105

Part No TPC 030-105
Manufacturer Traco Power
Catalog Off - Board Modules
Description AC/DC CONVERTER 5V 20W /
Datasheet
TPC 030-105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr Traco Power
Series TPC (30W)
Package Box
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 85 ~ 264 VAC
DC Voltage - Input (Min) 90V
DC Voltage - Input (Max) 375V
Voltage - Output 1 5V
Current - Output (Max) 4A
Power (Watts) 20W
Applications Industrial, ITE (Commercial)
Efficiency 79%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, IP20, Universal Input
Dimension 3.80" L x 1.04" W x 3.54" H (96.5mm x 26.4mm x 89.9mm)
Approval Agency CB, CE, cCSAus, SIQ
Base Product Number TPC 030
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names TPC 030-105-ND,TPC030-105,TPC030-105-ND,1951-3223
Standard Package 10
Win Source Part Number 1109882-TPC 030-105
Ultra Librarian 3D Model Ultra Librarian TPC 030-105 CAD Model

Description

The TPC 030-105 is an Industrial, DIN Rail Power Supplies electronic component manufactured by Traco Power.

  • Package: Box
  • Power Rating: 20W
  • Adjustable Output: Yes
  • Output Channels: Single
  • Maximum Output Current: 4A
  • Output Voltage: 5V
  • Efficiency: 79%
  • Operating Temperature Range: -25°C to 70°C
  • Popularity: Popular
  • Supply and Demand Status: Balanced
  • Applications: Industrial and ITE (Commercial)
