2N5794U Microchip Technology
Same model may have multiple batches, images only for reference.

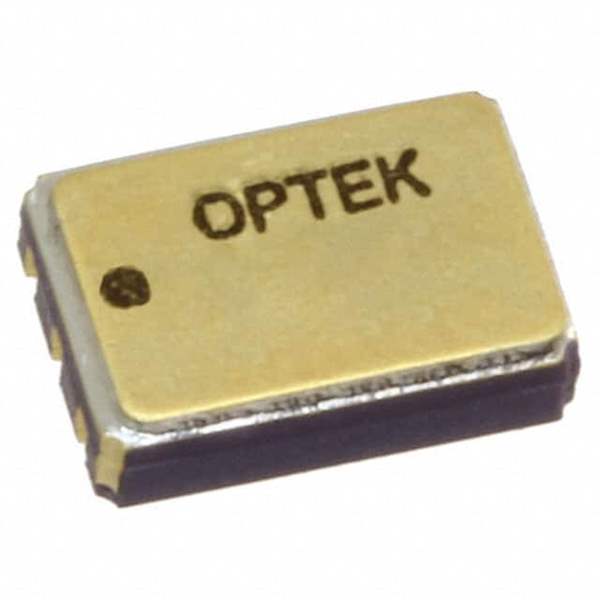

2N5794U

Part No 2N5794U
Manufacturer TT Electronics
Catalog Transistors (BJT) - Arrays
Description TRANS 2NPN 40V 0.6A 6CLCC
Datasheet
2N5794U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar Transistor Arrays
Mfr TT Electronics
Package Bulk
Product Status Active
Transistor Type 2 NPN (Dual)
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 900mV @ 30mA, 300mA
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V
Power - Max 600mW
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Surface Mount
Package / Case 6-CLCC
Supplier Device Package 6-CLCC
Base Product Number 2N5794
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 1020403-2N5794U
Ultra Librarian 3D Model Ultra Librarian 2N5794U CAD Model

Description

The 1020403-2N5794U is a dual NPN bipolar transistor array. It is part of the Discrete Semiconductor Products category and is manufactured by TT Electronics.

  • Maximum Power Rating: 600mW
  • Maximum Voltage Breakdown: 40V
  • Maximum Collector Current: 600mA
  • Vce Saturation: 900mV @ 30mA and 300mA
  • Current Cutoff: 10μA
  • DC Current Gain: 100 @ 150mA and 10V
  • Mounting Type: Surface mountable
  • Package: 6-CLCC
  • Temperature Range: -65°C to 200°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.21.0095
