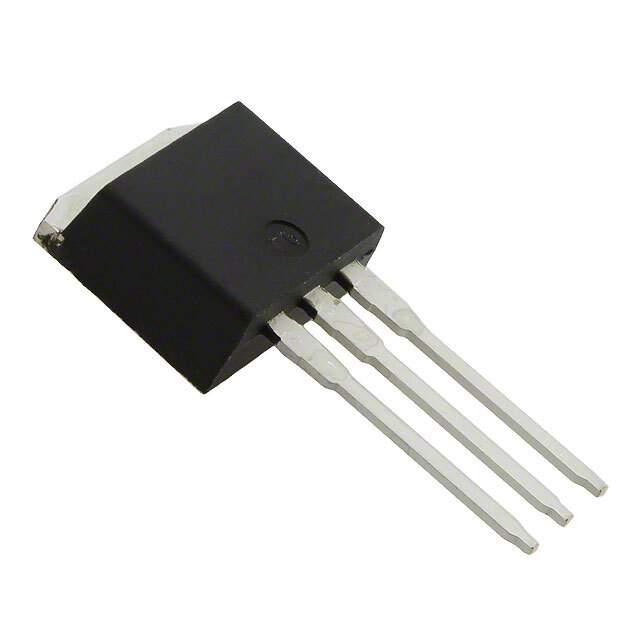

IRF820LPBF Real Image
Same model may have multiple batches, images only for reference.

IRF820LPBF

Part No IRF820LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 2.5A TO-262 / Trans MOSFET N-CH 500V 2.5A 3-Pin(3+Tab) TO-220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 24nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 360pF @ 25V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 3.1W (Ta), 50W (Tc)
Rds On (Maximum) @ Id, Vgs 3 Ohm @ 1.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package I2PAK
Package TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number 777035-IRF820LPBF
Popularity Medium
Supply and Demand Status Limited
Family Name IRF820L
Introduction Date March 27, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRF820LPBF CAD Model

Description

The IRF820LPBF is a MOSFET transistor that is designed for use in a variety of applications, including power supplies, motor drives, and lighting control.

  • Package: TO-262-3 Long Leads, I2Pak, TO-262AA
  • Power Dissipation: 3.1W (Ta), 50W (Tc)
  • Alternatives: STP4NB50, IRF820FI, IRF820, STP3NC50
