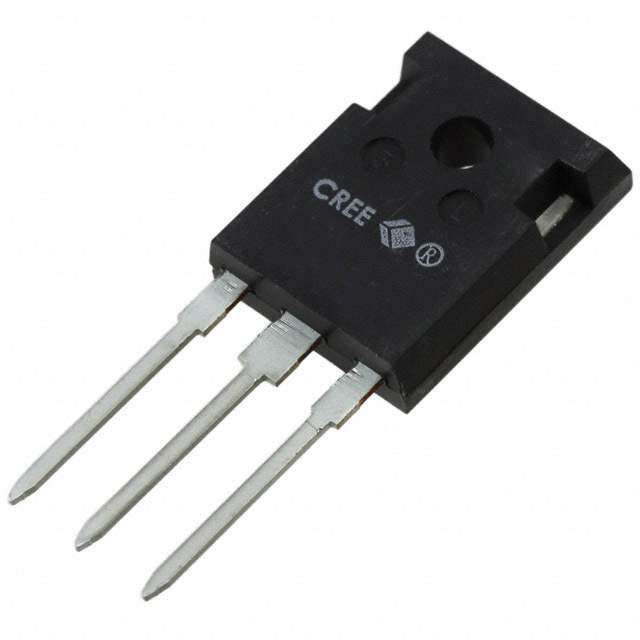

The Wolfspeed, Inc. C3M™ SiCFET transistor with manufacturer part number 1050837-C3M0280090D is a through-hole device with an N-channel FET type.

• Drain-to-Source Voltage (Vdss): 900 V
• Current-Continuous Drain (Id) @ 25°C: 11.5A (Tc)
• Rds On (Max) @ Id, Vgs: 360mOhm @ 7.5A, 15V
• Vgs(th) (Max) @ Id: 3.5V @ 1.2mA
• Power Dissipation (Max): 54W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 9.5 nC @ 15 V
• Input Capacitance (Ciss) (Max) @ Vds: 150 pF @ 600 V
• Gate-Source Voltage (Vgs): +18V, -8V
• Temperature Range for Operating: -55°C ~ 150°C (TJ)
• MSL Level: 1 (Unlimited)
• HTSUS: 8541.29.0095
• Drive Voltage (Max Rds On, Min Rds On): 15V
