The AP5726FDCG-7 from Diodes Incorporated is a highly efficient, constant current LED driver IC designed to meet the needs of a wide range of lighting applications. This compact, feature-rich component is perfect for driving high-brightness LEDs with consistent luminosity and extended operational life.

Key Features

• Constant Current Output: The device ensures a stable current, which is critical for maintaining consistent brightness and color over the LED's lifespan.
• Wide Input Voltage Range: Accommodates various power supplies, making it versatile for different applications.
• High Efficiency: Its power conversion efficiency minimizes energy waste, contributing to energy savings and thermal management.
• Low EMI: The AP5726FDCG-7 is designed to produce low electromagnetic interference, making it suitable for use in environments where EMI must be minimized.
• Thermal Protection: Features built-in thermal shutdown protection, which safeguards the IC and the LEDs from overheating.
• Compact Package: The small form factor is ideal for space-constrained applications.

Applications

The versatility of the AP5726FDCG-7 makes it an excellent choice for a variety of LED lighting solutions, including:

• Backlighting for LCD displays
• Automotive lighting
• General illumination
• Architectural lighting
• Portable flashlight and torches

Technical Specifications

The AP5726FDCG-7 operates with an input voltage range that accommodates typical battery voltages, making it suitable for portable applications. Its constant current output ensures a uniform LED brightness, while the device's power efficiency supports longer battery life and reduced energy consumption.

Ordering Information

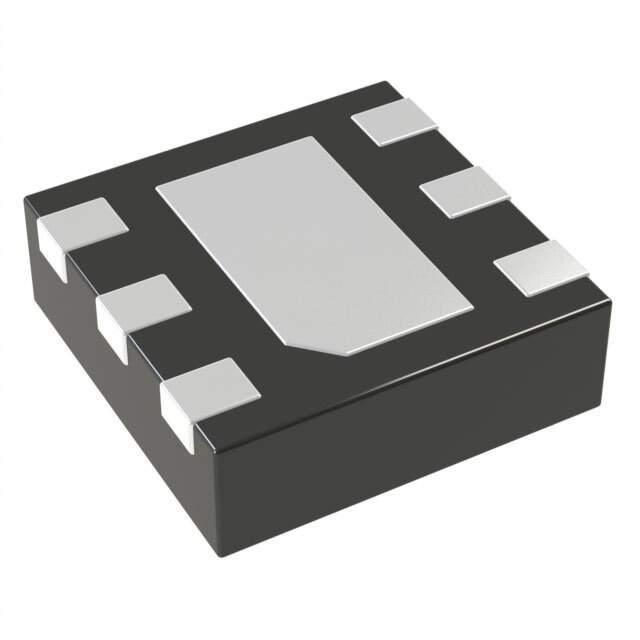

The product is available in a small 6-pin package and can be ordered using the part number AP5726FDCG-7. For detailed specifications, application circuits, and ordering information, customers should refer to the official datasheet provided by Diodes Incorporated or contact their sales representative.
