Same model may have multiple batches, images only for reference.

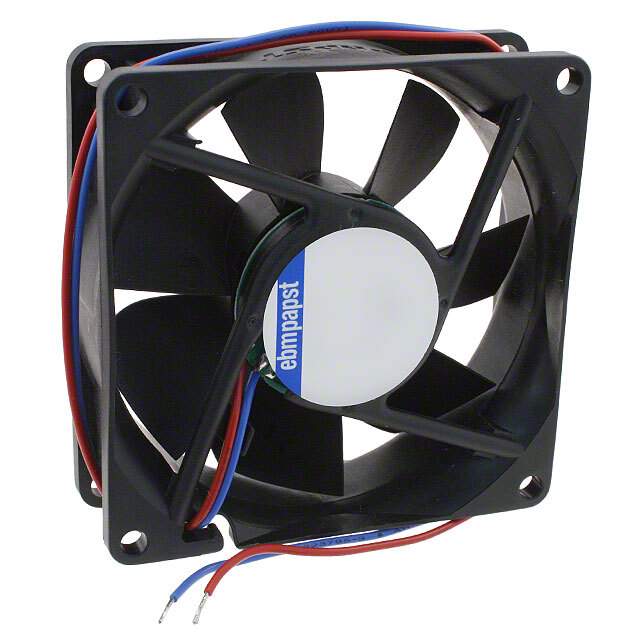

8414NGM Real Image
Same model may have multiple batches, images only for reference.

8414NGM

Part No 8414NGM
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sintec 34.1 CFM (0.955m³/min) 2 Wire Leads
Datasheet
8414NGM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 8400N
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 34.1 CFM (0.955m³/min)
Bearing Type Sintec
Fan Type Tubeaxial
Noise 26.0dB(A)
Power (Watts) 1.4 W
RPM 2600 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.209 lb (94.8 g)
Voltage Range 18 ~ 28VDC
Material - Frame Polybutylene Terephthalate (PBT) , Fiberglass Reinforced
Material - Blade Polyamide (PA) , Nylon, Fiberglass Reinforced
Lifetime @ Temp. 80000 Hrs @ 40°C
Base Product Number 8414
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1349582-8414NGM
Ultra Librarian 3D Model Ultra Librarian 8414NGM CAD Model

Description

The 8400N series DC Brushless Fan is a reliable and efficient cooling solution for electronic components.

  • Size: 80mm L x 80mm H
  • Air Flow (Max): 34.1 CFM (0.955m³/min)
  • Voltage Range: 18 ~ 28VDC
  • Bearing Type: Sintec
  • Fan Type: Tubeaxial
  • Lifetime: 80000 Hrs @ 40°C
  • Material: Polybutylene Terephthalate (PBT) and Fiberglass Reinforced
  • Weight: 0.209 lb (94.8 g)
  • Noise: 26.0dB(A)
  • Speed: 2600 RPM
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CE, CSA, UL, and VDE
