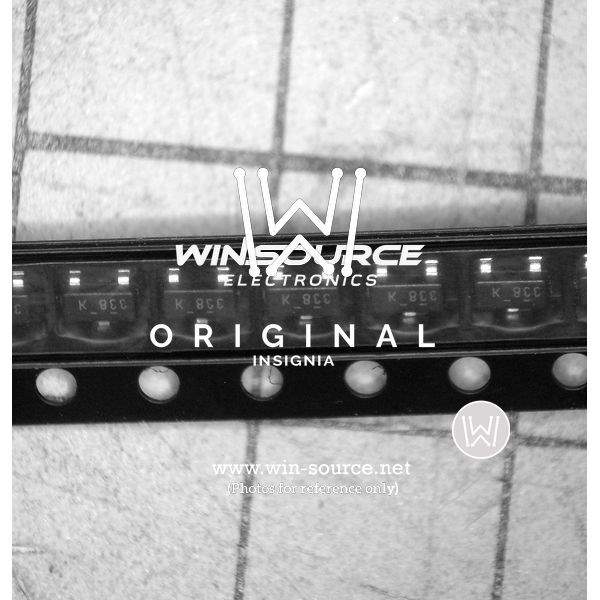

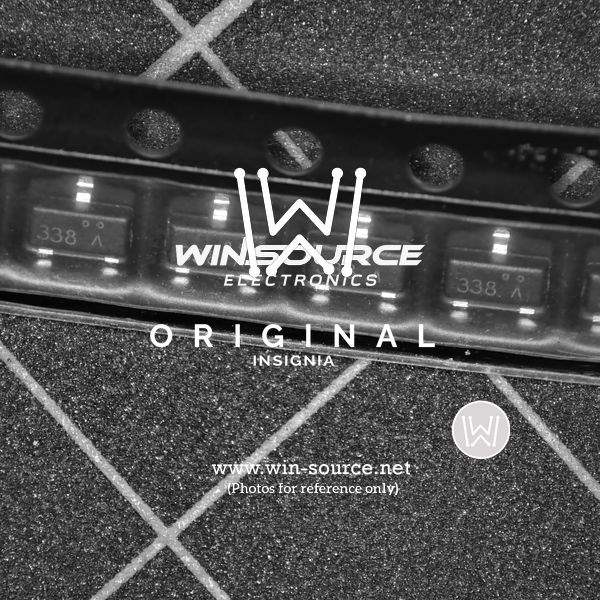

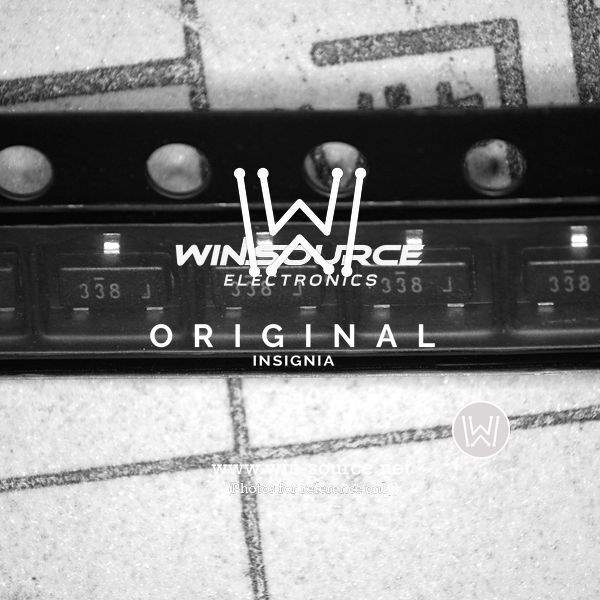

Same model may have multiple batches, images only for reference.

FDN338P

Name: FDN338P
Brand: Fairchild/ON Semiconductor
SKU: 129554
Availability: InStock
Rating: 4.85 (51 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FDN338P
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 1.6A SSOT3
Datasheet	FDN338P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	1.5V @ 250μA
Max Gate Charge	6.2nC @ 4.5V
Max Input Capacitance	451pF @ 10V
Maximum Gate-Source Voltage	±8V
Power Dissipation (Max)	500mW (Ta)
Maximum Rds On at Id,Vgs	115 mOhm @ 1.6A, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SuperSOT-3
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	016105-FDN338P
Family Name	FDN338P
Introduction Date	April 17, 1998
ECCN	EAR99
Country of Origin	Israel, Philippines
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Power Management, Industrial
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDN338P CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDN338P is a P-channel MOSFET electronic component designed for use in power management and industrial applications.

Drain-Source Breakdown Voltage: 20V (Max)
Continuous Drain Current: 1.6A @ 25°C
Gate-Source Threshold Voltage: 1.5V @ 250μA
Gate Charge: 6.2nC @ 4.5V (Max)
Package: SuperSOT-3
Temperature Range: -55°C to 150°C (TJ)
