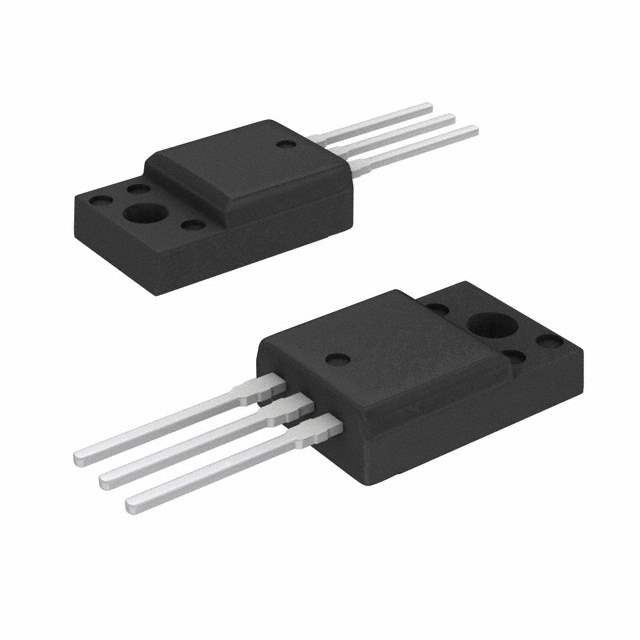

FQPF20N06 Real Image
Same model may have multiple batches, images only for reference.

FQPF20N06

Part No FQPF20N06
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 60V 15A 3-Pin(3+Tab) TO-220FP Tube / MOSFET N-CH 60V 15.7A TO-220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 15.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 13nC @ 5V
Max Input Capacitance 630pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 30W (Tc)
Maximum Rds On at Id,Vgs 55 mOhm @ 7.85A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220F
Dimension TO-220-3 Full Pack
Win Source Part Number 067454-FQPF20N06
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name FQPF20N06
Introduction Date May 15, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian FQPF20N06 CAD Model

Description

The FQPF20N06 is an N-Channel MOSFET manufactured by Fairchild/ON Semiconductor.

  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 15.7A (Tc) @ 25°C
  • Mounting Technology: Through-Hole
  • Package: TO-220F
  • Rds On (max): 55 mOhm @ 7.85A, 10V
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Supply and Demand: Balanced
  • Halogen-Free Compliant: Yes
