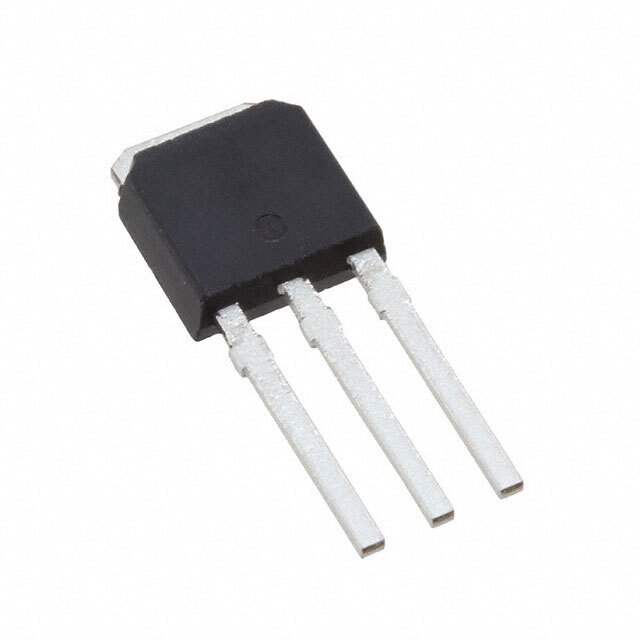

IRLU4343 Real Image
Same model may have multiple batches, images only for reference.

IRLU4343

Part No IRLU4343
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 26A I-PAK
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 26A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 42nC @ 10V
Max Input Capacitance 740pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 79W (Tc)
Maximum Rds On at Id,Vgs 50 mOhm @ 4.7A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package I-Pak
Dimension TO-251-3 Short Leads, IPak, TO-251AA
Win Source Part Number 127952-IRLU4343
Popularity Medium
Supply and Demand Status Limited
Quantity per package 75
Ultra Librarian 3D Model Ultra Librarian IRLU4343 CAD Model

Description

The Infineon Technologies IRLU4343 is an N-Channel MOSFET transistor that is used in various applications.

  • Power Dissipation: Up to 79W (Tc)
  • Popularity: Medium
  • Packaging: Tube/Rail
  • Mounting Type: Through-Hole
  • Technology: MOSFET
  • Polarity: N-Channel
  • Win Source Part Number: 127952-IRLU4343
  • Supply and Demand: Limited
  • Package: I-Pak
  • Dimension: TO-251-3 Short Leads, IPak, TO-251AA
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current @ 25°C: 26A (Tc)
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 42nC @ 10V
  • Maximum Input Capacitance: 740pF @ 50V
  • Maximum Rds On at Id,Vgs: 50 mOhm @ 4.7A, 10V
  • Temperature Range: -55°C to 175°C (TJ)
