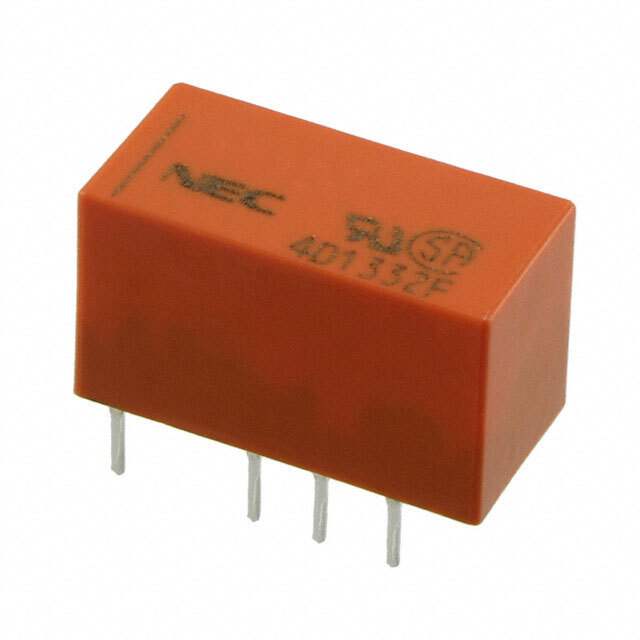

EC2-5ND

Part No EC2-5ND
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 5V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Kemet
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 2ms
Release Time 1ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 125 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 090859-EC2-5ND
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EC2-5ND CAD Model

Description

EC2-5ND Relay

The EC2-5ND is a compact and efficient relay designed for various electronic applications. It offers high reliability and performance at a competitive price point. The relay is suitable for projects that require precise control and signal switching.

  • Features and Benefits:
    • Compact design for space-saving applications
    • Reliable performance in a wide range of conditions
    • Low power consumption
    • Durable construction for long-lasting use
  • Applications:
    • Home automation systems
    • Industrial control panels
    • Automated test equipment
  • Additional Details: The EC2-5ND is ideal for engineers seeking a cost-effective solution without compromising on quality.
