Same model may have multiple batches, images only for reference.

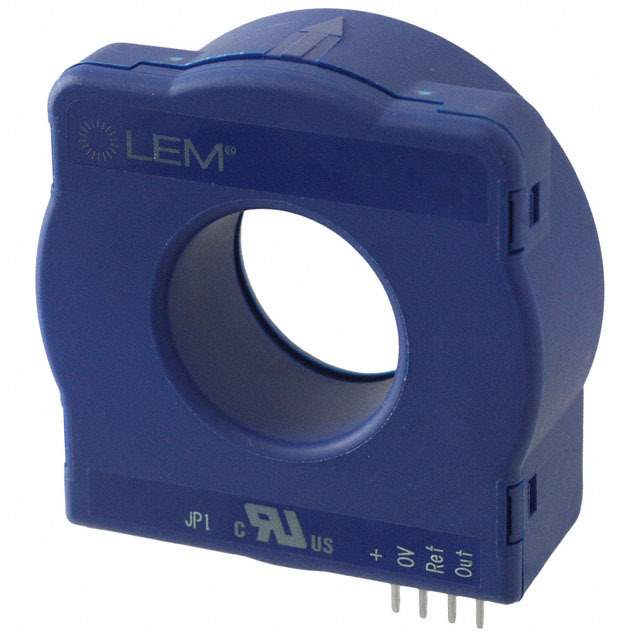

CTSR 0.3-P Real Image
Same model may have multiple batches, images only for reference.

CTSR 0.3-P

Part No CTSR 0.3-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 300MA AC/DC / Closed Loop Current Sensor AC/DC Current 5V 4-Pin
Datasheet
CTSR 0.3-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series CTSR
Packaging Bulk
For Measuring AC/DC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 300mA
Number of Channels 1
Output Ratiometric, Voltage
Frequency 3.5kHz
Linearity ±0.5%
Accuracy ±1.9%
Operating Supply Voltage 4.75 V ~ 5.25 V
Response Time 50μs
Maximum Supply Current 21.6mA
Operating Temperature Range -40°C ~ 105°C
Polarization Bidirectional
Mounting PCB, Through Hole
Package Module
Win Source Part Number 771924-CTSR 0.3-P
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Family Name CTSR 0.3-P
Introduction Date November 24, 2011
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CTSR 0.3-P CAD Model

Description

The LEM USA Inc. CTSR 0.3-P 771924-CTSR 0.3-P is a flux gate, closed-loop sensor.

  • Current Sensing: 300mA
  • Linearity: ±0.5%
  • Accuracy: ±1.9%
  • Output Type: Ratiometric, Voltage
  • Polarization: Bidirectional
  • Operating Supply Voltage: 4.75 V to 5.25 V
  • Maximum Supply Current: 21.6mA
  • Response Time: 50μs
  • Frequency: 3.5kHz
  • Mounting Type: PCB, Through-Hole
  • Estimated EOL Date: 2024
  • Packaging: Bulk (25 pieces)
