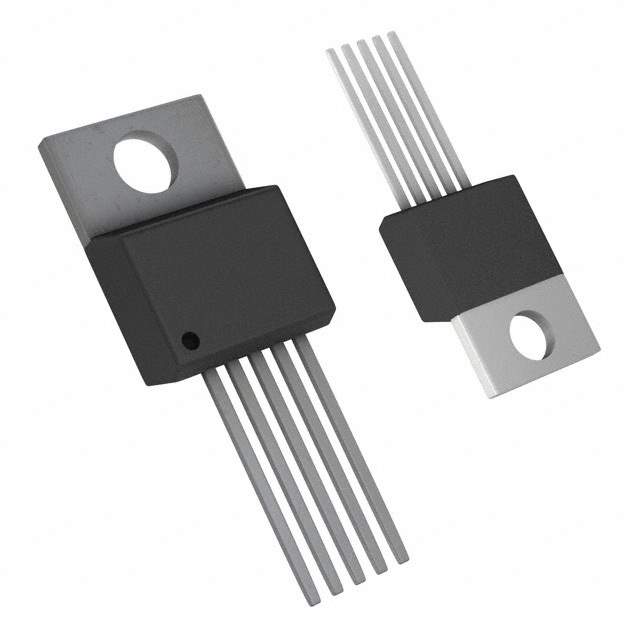

LT1529CT#06PBF - Low Dropout Voltage Regulator

The LT1529CT#06PBF is a robust low dropout voltage regulator (LDO) designed and manufactured by Linear Technology, now part of Analog Devices. This high-performance component is engineered to maintain a stable output voltage despite variations in input voltage and load conditions, making it ideal for a wide range of applications that require reliable power management.

Key Features

• Output Current: Capable of delivering up to 3A of continuous output current, the LT1529CT#06PBF is suitable for powering a variety of devices that require substantial current levels.
• Low Dropout Voltage: With a dropout voltage of typically 0.5V at full load, this regulator ensures efficient operation by minimizing the difference between input and output voltages.
• Adjustable Output: The output voltage can be set from 3.3V to 15V with a simple external resistor divider, providing flexibility for different voltage requirements.
• Stable with Low ESR Capacitors: The LT1529CT#06PBF remains stable with output capacitors that have a low equivalent series resistance (ESR), broadening the range of compatible capacitors.
• Protection Features: It includes built-in protection features such as overcurrent and overtemperature protection, ensuring the longevity and reliability of both the regulator and the system it powers.

Applications

The LT1529CT#06PBF is versatile and can be used in various applications, including:

• Microprocessor supply
• Power supplies for DSPs and FPGAs
• Battery-powered equipment
• Linear power supplies

Product Specifications

With its combination of high current capability, low dropout voltage, and adjustable output, the LT1529CT#06PBF is a reliable choice for designers looking to implement a stable power supply in their electronic systems.
