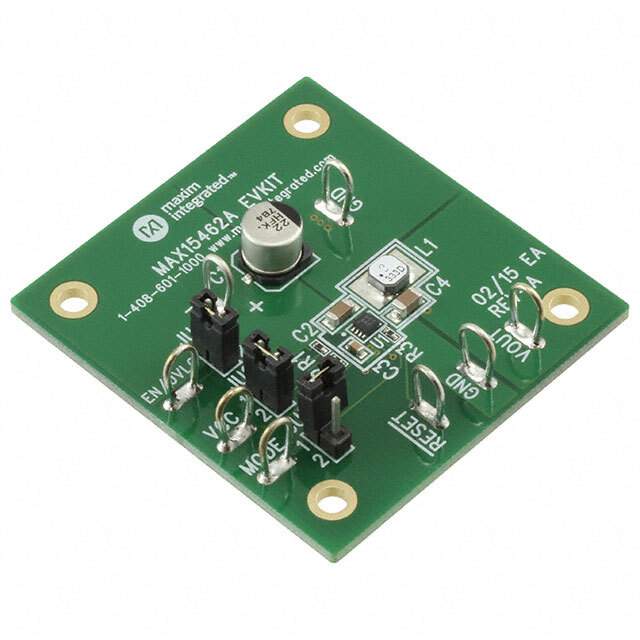

MAX15462AEVKIT# Evaluation Kit by Maxim Integrated

The MAX15462AEVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX15462A high-efficiency, high-voltage, synchronous step-down DC-DC converter. This versatile kit is an essential tool for engineers and developers looking to test the features and performance of the MAX15462A in a variety of power management applications.

The MAX15462A converter itself is an advanced component that operates over a wide input voltage range of 4.5V to 60V, making it suitable for use in high-voltage systems such as industrial, automotive, and communications infrastructure. It delivers up to 300mA of output current with adjustable output voltages from 0.9V to 0.9 x VIN, allowing for great flexibility in design.

Key features of the MAX15462AEVKIT# include:

• Pre-assembled evaluation board for quick setup and testing.
• Integrated MAX15462A IC with high-efficiency, synchronous step-down regulator topology.
• Adjustable switching frequency from 100kHz to 2.2MHz, which can be synchronized to an external clock.
• Spread-spectrum frequency modulation for reduced EMI.
• Thermal shutdown and over-current protection to ensure safe operation under various conditions.
• Compact and durable design, suitable for testing in both lab and field environments.

The evaluation kit also comes with a user-friendly guide that provides detailed instructions on how to configure and operate the board. It includes information on setting input and output voltages, adjusting switching frequencies, and measuring efficiency. Additionally, the kit is equipped with test points and jumper options to facilitate easy measurement and modification of circuit parameters.

Whether you're developing power supplies for sensitive electronics, optimizing energy consumption in battery-powered devices, or exploring innovative solutions for high-voltage applications, the MAX15462AEVKIT# from Maxim Integrated is an invaluable asset for your development toolkit.
