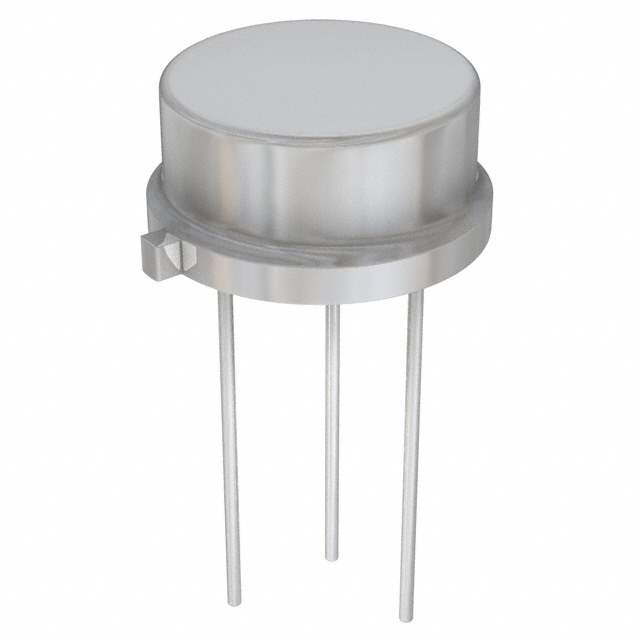

The 2N5154 is a robust bipolar junction transistor (BJT) from Microchip Technology, designed for high-power switching and amplifier applications. This NPN transistor is capable of handling significant voltage and current levels, making it an excellent choice for a wide range of electronic circuits.

Key Features:

• High Current Handling: The 2N5154 is capable of managing high current, ensuring reliability in demanding situations.
• Voltage Tolerance: With its ability to handle high voltages, this transistor is suitable for power regulation tasks.
• Power Dissipation: It offers excellent power dissipation characteristics, which is crucial for maintaining stability and performance in power applications.
• Switching and Amplification: Designed for both switching and amplification purposes, the 2N5154 is versatile and can be used in various circuit designs.

Applications:

The 2N5154 from Microchip Technology is commonly used in:

• Power supply circuits
• Audio amplifiers
• Motor control systems
• Linear and switching applications

Technical Specifications:

Parameter Value Transistor Polarity NPN Collector-Emitter Voltage (Vceo) 70V Collector-Base Voltage (Vcbo) 100V Emitter-Base Voltage (Vebo) 7V Collector Current (Ic) 4A Power Dissipation (Pd) 25W DC Current Gain (hFE) 20 to 70

Quality and Reliability:

Microchip Technology is known for its commitment to quality, and the 2N5154 is no exception. With its robust construction and tested performance, this transistor is built to deliver consistent results over its operational lifespan.

Note: For detailed specifications, application notes, and safety information, please refer to the official datasheet and product documentation from Microchip Technology.
