Product Overview: 2N6546 High-Power NPN Transistor

The 2N6546 is a robust high-power NPN bipolar junction transistor (BJT) designed and manufactured by Microchip Technology, a leader in the semiconductor industry. This transistor is engineered to handle high voltage and current applications, making it an ideal choice for power switching and amplification tasks.

Key Features

• Voltage and Current Ratings: The 2N6546 boasts a collector-emitter voltage (VCEO) of 350V, collector-base voltage (VCBO) of 700V, and emitter-base voltage (VEBO) of 9V. It can support a continuous collector current (IC) of up to 15A, making it suitable for high-power circuits.
• Power Dissipation: With a power dissipation (PD) capacity of up to 175W, this transistor can sustain significant amounts of power without overheating, ensuring reliable performance in demanding situations.
• High Frequency Performance: It also features a transition frequency (fT) of 4 MHz, enabling it to perform well in high-frequency applications.

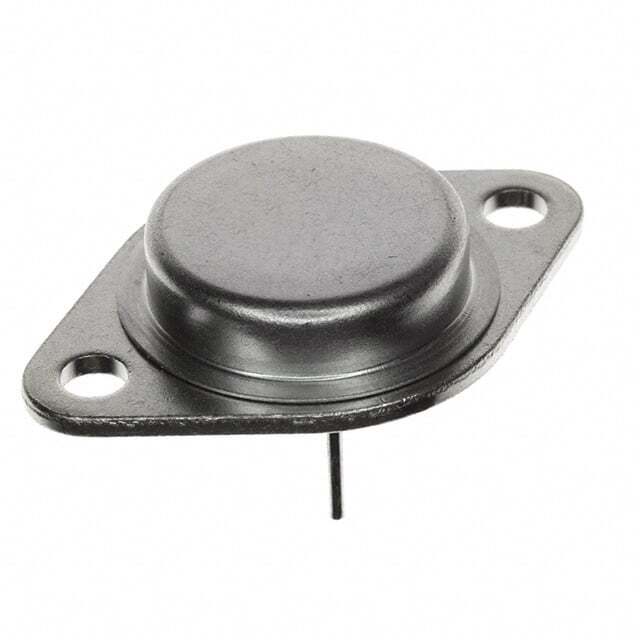

• Robust Package: The 2N6546 is available in a TO-3 package, known for its durability and excellent heat dissipation characteristics, which is crucial for maintaining stability and longevity in high-power applications.

Applications

The 2N6546's high voltage and current capabilities make it suitable for a variety of applications, including:

• Power supply regulators
• Motor controllers
• Audio amplifiers
• Switching circuits
• Linear amplifiers
• Commercial and industrial power systems

Quality and Reliability

Microchip Technology is committed to providing high-quality and reliable components. The 2N6546 is built to meet stringent standards, ensuring optimal performance in even the most challenging environments. Whether you are designing a new power system or upgrading an existing one, the 2N6546 from Microchip Technology is a dependable choice that won't disappoint.
