The SG7805AK-DESC from Microchip Technology is a robust and reliable fixed positive voltage regulator designed to offer stable performance in a variety of electronic applications. This regulator is part of the SG7800A series, known for its high efficiency and dependability across a range of operating conditions.

Key Features

• Output Voltage: The SG7805AK-DESC provides a fixed output voltage of 5V, which is ideal for logic circuits and standard digital systems.
• Output Current: Capable of delivering an output current of up to 1.5A, it meets the requirements of most medium-power applications.
• Thermal Overload Protection: It includes built-in thermal overload protection that safeguards the device and the application circuitry from damage due to excessive heat.
• Short Circuit Protection: The integrated short circuit protection ensures long-term reliability by preventing the regulator from damage in case of a short circuit condition.
• Voltage Regulation: The device maintains excellent line and load regulation, ensuring a stable output voltage even with variations in input voltage or load conditions.
• Military Grade: The '-DESC' designation indicates that this device meets the stringent requirements of military-grade specifications, making it suitable for use in defense and aerospace applications.

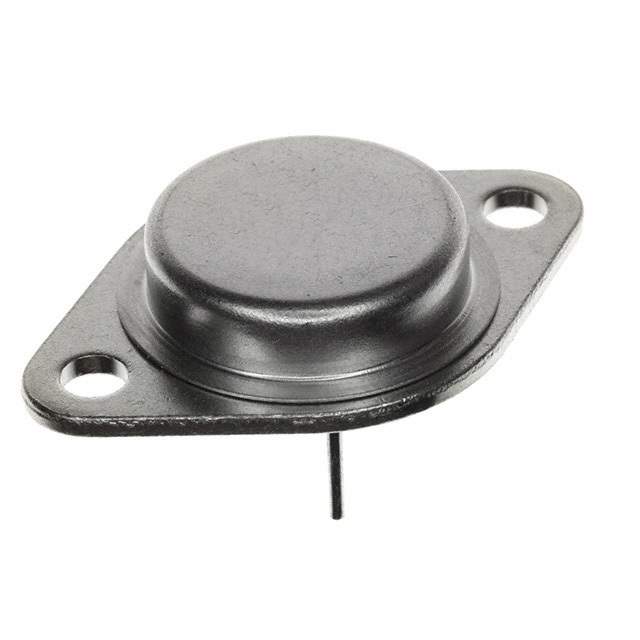

• Package Type: This regulator is available in a TO-3 package, known for its high power dissipation and durability.

Applications

The SG7805AK-DESC is versatile and can be used in a diverse range of applications, including:

• Power supplies for digital systems
• Instrumentation and control systems
• Automotive electronics
• Military and aerospace technology
• Telecommunication infrastructure

With its combination of features, the SG7805AK-DESC from Microchip Technology is a great choice for designers looking for a reliable voltage regulation solution, particularly in environments where performance and durability are critical.
