Microchip Technology SY100S325FC: A Robust Solution for High-Speed Logic Applications

The SY100S325FC from Microchip Technology is a high-performance, quintuple differential line receiver designed to address the stringent requirements of high-speed logic applications. This device is a part of Microchip's SY100S325 series, which is renowned for its reliability and efficiency in processing digital signals.

Built upon the Silicon Germanium (SiGe) technology, the SY100S325FC offers a perfect blend of speed and power consumption. It operates over a wide voltage range and is capable of translating differential PECL (Positive Emitter-Coupled Logic) levels to TTL (Transistor-Transistor Logic) output levels. This functionality is critical for systems that require a seamless interface between different logic families.

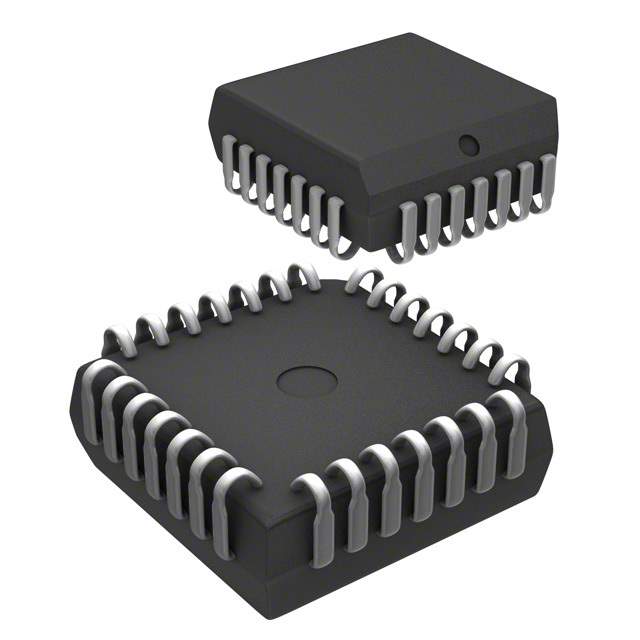

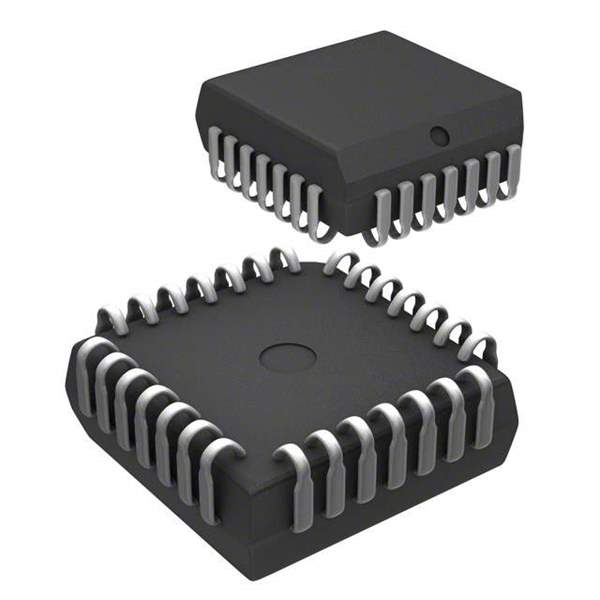

The SY100S325FC is packaged in a compact 28-lead PLCC (Plastic Leaded Chip Carrier) that ensures a small footprint while providing excellent thermal characteristics. This makes it an ideal choice for space-constrained applications that require high-density circuitry without compromising on performance.

The device features five differential line receivers, each with its own pair of differential inputs. The SY100S325FC boasts a typical propagation delay of only 1.5ns, which is crucial for high-speed data acquisition and processing tasks. Moreover, it has a wide operating temperature range from -40°C to +85°C, allowing it to perform reliably in various environmental conditions.

With a maximum operating frequency of several gigahertz, the SY100S325FC is well-suited for use in telecommunications, data communications, and computing systems where rapid data transfer is paramount. Additionally, its enhanced signal integrity and reduced electromagnetic interference make it a preferred choice for sensitive applications such as medical imaging and aerospace electronics.

In summary, the SY100S325FC from Microchip Technology is a versatile and robust differential line receiver that offers high-speed performance, low power consumption, and reliable operation across a broad range of applications. Its advanced technology and thoughtful design make it an essential component for any system requiring fast and accurate logic level translation.
