The MSR1560 is a robust and high-performance Schottky rectifier designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This device is specifically engineered to deliver efficient power management and conversion for a wide range of electronic applications.

Key Features:

• High Current Capability: The MSR1560 is capable of conducting up to 15 amperes of continuous current, making it suitable for high-current applications.
• Low Forward Voltage Drop: With a low forward voltage drop, this rectifier ensures minimal power loss and improved efficiency, which is crucial for power-sensitive designs.
• High Surge Capability: The device is designed to withstand high surge currents, providing reliable performance under transient conditions.
• Robust Temperature Performance: The MSR1560 operates effectively over a wide temperature range, ensuring stability and functionality in varying environmental conditions.
• Guard Ring Die Construction: The inclusion of a guard ring die construction offers enhanced reliability and long-term stability by providing protection against voltage spikes and transients.

Applications:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• High-frequency circuitries
• Automotive applications

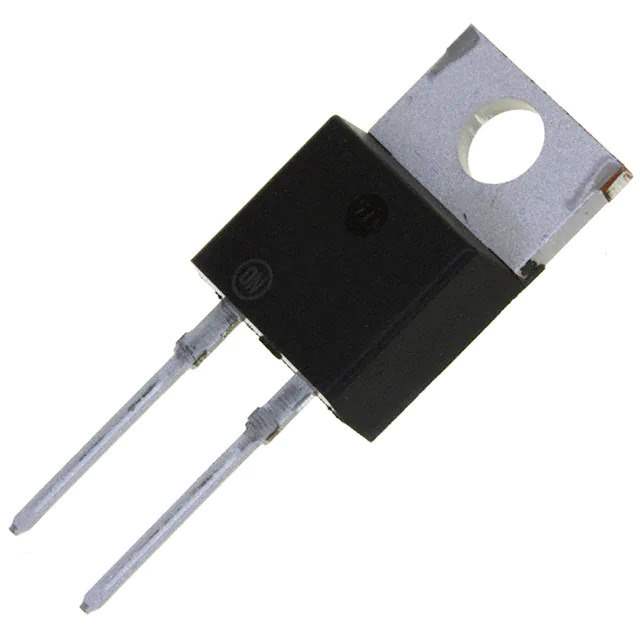

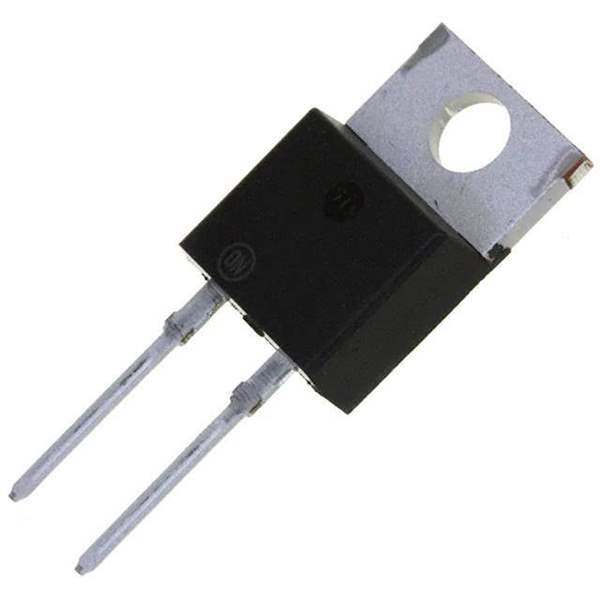

ON Semiconductor's MSR1560 is packaged in a TO-220AC, which is known for its ease of installation and ability to handle high-power circuits. The package is designed for through-hole mounting, which provides strong mechanical anchoring to the PCB, and is ideal for applications requiring a robust physical connection.

With its combination of high efficiency, reliability, and thermal performance, the MSR1560 is a preferred choice for designers looking to optimize their power management systems. Whether for industrial, automotive, or consumer electronics, the MSR1560 from ON Semiconductor is engineered to meet the challenges of modern electronic circuitry.
