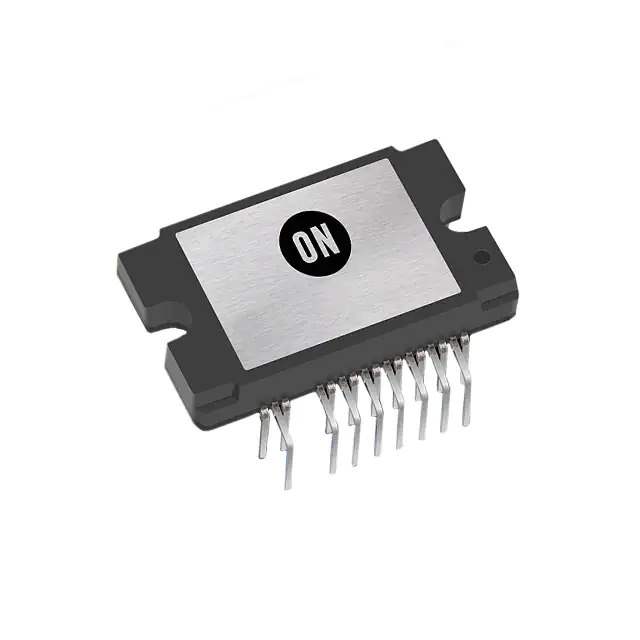

ON Semiconductor STK5Q4U362J-E Intelligent Power Module

The ON Semiconductor STK5Q4U362J-E is a cutting-edge Intelligent Power Module (IPM) designed for high-efficiency and high-performance applications. This compact and robust module is an ideal solution for driving brushless DC motors, AC motors, and various other applications that require precise and reliable motor control.

Featuring a 600V, 3-phase inverter with integrated gate drivers and protection circuits, the STK5Q4U362J-E is engineered to provide a high level of integration to reduce system complexity and enhance overall performance. The module's built-in IGBTs are optimized for low conduction and switching losses, which translates into improved thermal performance and higher system efficiency.

The STK5Q4U362J-E incorporates advanced protection features, including over-current, over-temperature, under-voltage lockout, and fault reporting. These features ensure the safe operation of the module under a wide range of conditions, protecting both the IPM itself and the system it controls from potential damage.

The module's compact design and optimized layout contribute to a reduction in the overall footprint of the system, making it an excellent choice for applications where space is at a premium. Its high level of integration simplifies the design of the control board, allowing for quicker development cycles and faster time-to-market for end products.

With its robust design and comprehensive feature set, the ON Semiconductor STK5Q4U362J-E is a highly reliable component that meets the stringent requirements of industrial motor control applications. Whether it's used in home appliances, HVAC systems, or industrial automation, this IPM ensures efficient and stable operation, contributing to the development of energy-saving and high-performing electronic systems.

Key Specifications:

• Voltage Rating: 600V
• Integrated 3-phase inverter with gate drivers
• Advanced protection circuits
• Compact package for space-saving designs
• Optimized for low conduction and switching losses

The STK5Q4U362J-E by ON Semiconductor represents a reliable and efficient solution for modern motor control applications, providing designers with a powerful tool to enhance their systems' performance.
