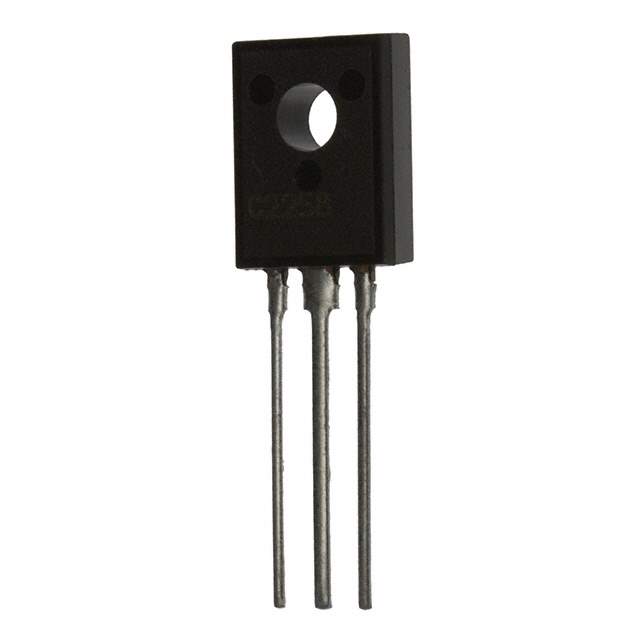

The 2SC1846 is a silicon NPN epitaxial planar transistor manufactured by Panasonic. It's designed for general-purpose amplifier and switching applications.

Applications:

• General-purpose amplification
• Switching circuits
• Driver stages
• Audio amplifiers
• Consumer electronics

Features:

• NPN Silicon Epitaxial Planar Transistor
• Low saturation voltage
• High current capacity
• Fast switching speed
• Excellent hFE linearity

Benefits:

• Provides efficient amplification in various circuits.
• Minimizes voltage drop in switching applications, improving efficiency.
• Handles moderate current levels.
• Enables rapid switching actions in digital circuits.
• Ensures accurate signal reproduction due to the linear gain characteristic.

Additional Details:

The 2SC1846 is typically packaged in a TO-92 through-hole package. Important electrical characteristics include collector-emitter voltage (VCEO), collector current (IC), and power dissipation (PD). The current gain (hFE) is a crucial parameter determining the amplification factor. Consult the Panasonic datasheet for detailed specifications, including maximum ratings, thermal characteristics, and recommended soldering procedures. Understanding these specifications is essential for proper circuit design and reliable operation.
