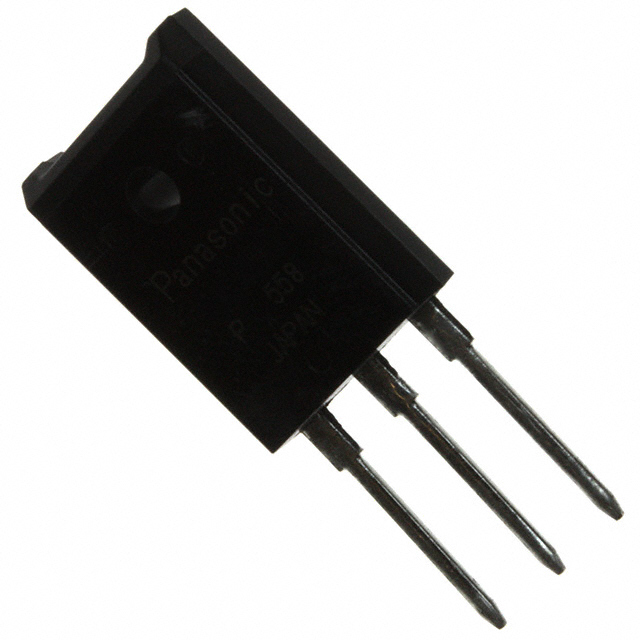

2SD14850P Panasonic
Same model may have multiple batches, images only for reference.

2SD14850P

Part No 2SD14850P
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 100V 5A TOP-3F
Datasheet
2SD14850P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 5A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) @ Ib, Ic 2V @ 300mA, 3A
Current - Collector Cutoff (Maximum) 50μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 100 @ 1A, 5V
Power - Max 3W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TOP-3F
Manufacturer Package TOP-3F-A1
Win Source Part Number 762794-2SD14850P
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD1485P
Introduction Date March 17, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD14850P CAD Model

Description

The Panasonic Electronic Components Transistor is a high-performance integrated circuit.

  • Power-maximum: 3W
  • Transistor type: NPN
  • Frequency-transition: 20MHz
  • Manufacturer package: TOP-3F-A1
  • Current-collector (Ic) (Maximum): 5A
  • Voltage-collector emitter breakdown (Maximum): 100V
  • Vce saturation (Maximum) @ Ib, Ic: 2V @ 300mA, 3A
  • Current-collector cutoff (Maximum): 50μA (ICBO)
  • DC current gain (hFE) (Minimum) @ Ic, Vce: 100 @ 1A, 5V
  • Operating temperature range: 150°C (TJ)
