Same model may have multiple batches, images only for reference.

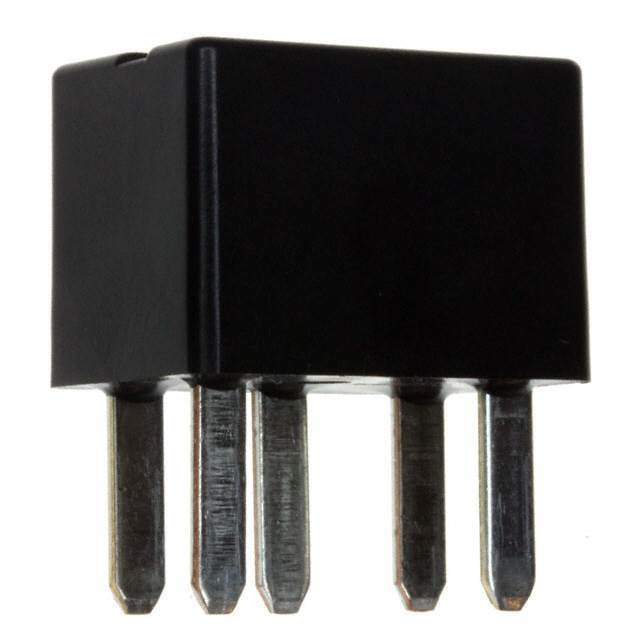

ACV11212 Real Image
Same model may have multiple batches, images only for reference.

ACV11212

Part No ACV11212
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 20A 12V
Datasheet
ACV11212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series ACV
Packaging Tube
Relay Type Automotive
Coil Type Non Latching
Coil Current 84mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Turn On Voltage (Maximum) 7 VDC
Turn Off Voltage (Minimum) 0.6 VDC
Operate Time 10ms
Release Time 15ms
Features Resistor
Mounting Socketable
Termination Style Plug In
Contact Material Silver Alloy, Cadmium Free
Coil Power 1 W
Coil Resistance 142.3 Ohms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 767037-ACV11212
Popularity Medium
Supply and Demand Status Balance
Family Name ACV
Introduction Date December 11, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACV11212 CAD Model

Description

The Panasonic Electric Works ACV11212 is an automotive relay from Panasonic Electric Works.

  • Coil Voltage: 12VDC
  • Contact Rating (Current): 20A
  • Type: Non-latching
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Alloy, Cadmium-Free
  • Socketable: Yes
  • Popularity: Medium
  • Supply and Demand: Balanced
