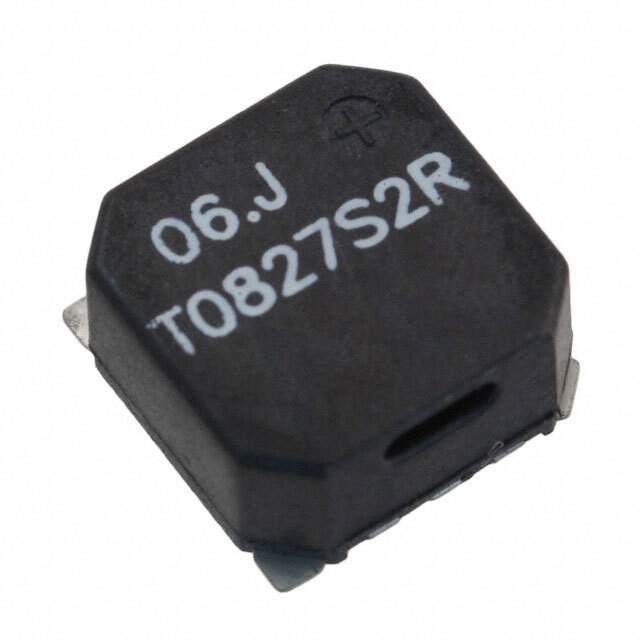

SMT-0827-S-2-R

Part No SMT-0827-S-2-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 2.5-4.5V SMD / Transducer (Electro-Mech)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer PUI Audio, Inc.
Packaging Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3.6V
Voltage Range 2.5 ~ 4.5V
Frequency 2.7kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 92dB at 3.6V, 10cm
Current - Supply 90mA
Port Location Side
Temperature Range - Operating -30°C ~ 70°C
Mounting Style SMD
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804913-SMT-0827-S-2-R
Ultra Librarian 3D Model Ultra Librarian SMT-0827-S-2-R CAD Model

Description

SMT-0827-S-2-R from PUI Audio, Inc. is an alarm, buzzer, and siren category component intended for designs that need compact audible indication in embedded electronics. Parts in this class are commonly considered for user alerts, fault notification, status indication, and operator feedback across consumer devices, industrial panels, handheld equipment, and control systems. Engineers typically select this type of component when board space, audible output, and straightforward system integration are important. For procurement and long-term design planning, the current lifecycle status for SMT-0827-S-2-R is information not available, so teams should confirm availability directly with PUI Audio, Inc. or an authorized distributor before committing to new production. RoHS compliance information is also not available in the provided input and should be verified through the latest manufacturer datasheet, declaration, or compliance certificate. This part is best positioned for applications that need dependable audible signaling while maintaining flexibility in sourcing and design review.
