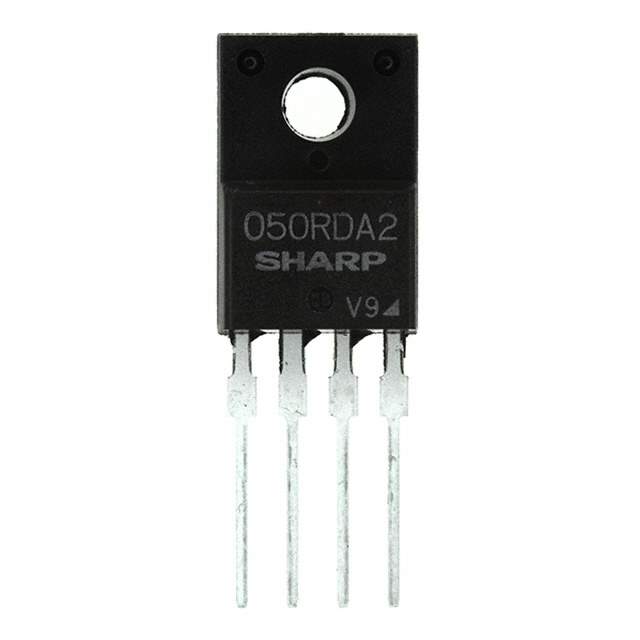

PQ050RDA2SZH Real Image
Same model may have multiple batches, images only for reference.

PQ050RDA2SZH

Part No PQ050RDA2SZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 2A TO220-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 1V @ 2A
Output Current 2A
Operating Supply Current 8mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 5V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 061993-PQ050RDA2SZH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ050RDA2SZH CAD Model

Description

The Sharp Microelectronics PQ050RDA2SZH is a positive fixed regulator that has an output voltage of 5V and an output current of 2A.

  • Output Voltage: 5V
  • Output Current: 2A
  • Popularity: Medium
  • Protection: Overcurrent and Over-Temperature
  • Package: TO-220-4
  • Maximum Input Voltage: 20V
  • Operating Supply Current: 8mA
  • PSRR: 60dB (120Hz)
