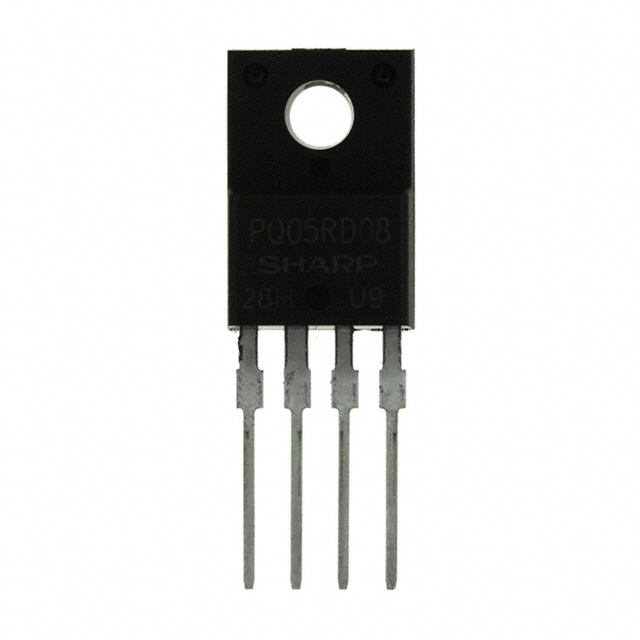

PQ05RD08J00H Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ05RD08J00H

Part No PQ05RD08J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.8A TO220-4
Datasheet
PQ05RD08J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 800mA
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 5V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 045903-PQ05RD08J00H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ05RD08J00H CAD Model

Description

The Sharp Microelectronics PQ05RD08J00H is a positive fixed regulator that has a maximum input voltage of 20V and an output voltage of 5V.

  • Maximum Input Voltage: 20V
  • Output Voltage: 5V
  • Dropout Voltage: 0.5V @ 500mA
  • Operating Supply Current: 10mA
  • Use: Circuits that require a stable and fixed output voltage
  • Enable Control: Yes
  • Protection: Overcurrent and over-temperature conditions
  • Mounting: Through-hole technology
  • Package: TO-220-4
  • PSRR: 55dB (120Hz)
  • Ideal for: Use in a wide range of applications
