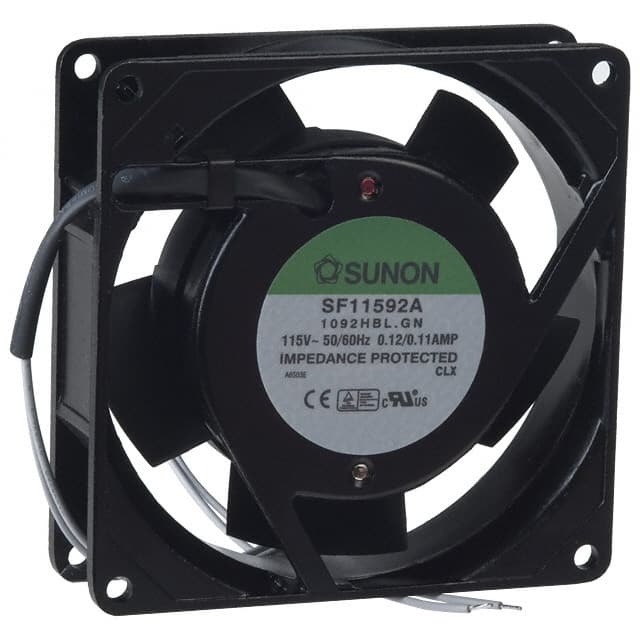

SF11592A-1092HBL.GN Sunon Fans
Same model may have multiple batches, images only for reference.

SF11592A-1092HBL.GN

Part No SF11592A-1092HBL.GN
Manufacturer Sunon Fans
Catalog AC Fans
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>AC Fans
Mfr Sunon Fans
Series SF
Package Bulk
Voltage - Rated 115VAC
Dimension Square - 91.5mm L x 91.5mm H
Width 25.50mm
Air Flow 37.0 CFM (1.04m3/min)
Static Pressure 0.190 in H2O (47.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 40.0dB(A)
Power (Watts) 12.00W
RPM 2850 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.617 lb (280.00 g)
Current Rating (Amps) 0.110A
Voltage Range 85 ~ 125VAC
Material - Frame Aluminum
Material - Blade Polybutylene Terephthalate (PBT)
Base Product Number SF11592A
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1315785-SF11592A-1092HBL.GN
Ultra Librarian 3D Model Ultra Librarian SF11592A-1092HBL.GN CAD Model

Description

This AC fan is a high-quality product from Sunon Fans.

  • Win Source Part Number: 1315785-SF11592A-1092HBL.GN
  • Series: SF series
  • Voltage Range: 85 ~ 125VAC
  • Power: 12.00W
  • Air Flow: 37.0 CFM (1.04m3/min)
  • Static Pressure: 0.190 in H2O (47.3 Pa)
  • Packaging: Packaged in bulk
  • Standard Package: One
  • MSL Level: Not applicable
  • HTSUS: 8414.59.6590
