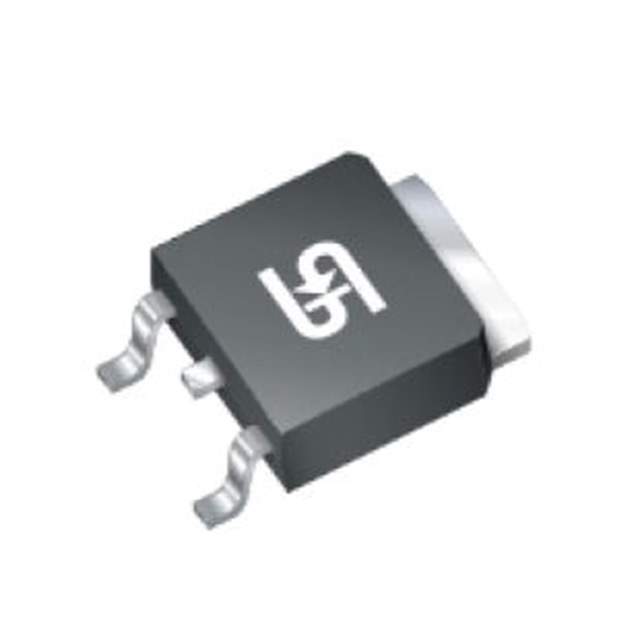

TSM4N70CP ROG

Name: TSM4N70CP ROG
Brand: Taiwan Semiconductor
SKU: 1383751
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSM4N70CP ROG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 700V 3.5A TO252 / N-Channel 700 V 3.5A (Tc) 56W (Tc) Surface Mount TO-252, (D-Pak)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	Taiwan Semiconductor
Series	-
Package	Tape & Reel
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.3Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	595 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	56W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	2,500 pcs
Win Source Part Number	1383751-TSM4N70CP ROG
Ultra Librarian 3D Model	Ultra Librarian TSM4N70CP ROG CAD Model

Alternative Products

Description

The TSM4N70CP ROG is a N-Channel MOSFET transistor from Taiwan Semiconductor.

Drain to Source Voltage (Vdss): 700V
Continuous Drain Current (Id): 3.5A
Rds On (Max): 3.3Ohm @ 2A and 10V
Gate Charge (Qg): 14nC @ 10V
Package: TO-252-3
Mounting Type: Surface Mountable
Power Dissipation: 56W
Operating Temperature Range: -55°C to 150°C
