The ADS54RF63EVM is a high-performance evaluation module (EVM) designed by Texas Instruments to showcase the capabilities of the ADS54RF63, a dual-channel, 12-bit, 550-MSPS analog-to-digital converter (ADC). This evaluation module is an excellent tool for designers and engineers to explore the features and performance of the ADS54RF63 ADC in a variety of applications, including wireless communications, radar systems, test and measurement equipment, and electronic warfare.

Key Features

• Dual-Channel Operation: The ADS54RF63EVM supports simultaneous sampling of two channels, enabling efficient data acquisition for complex signals.
• High-Speed ADC: With a sampling rate of up to 550 MSPS, this EVM is well-suited for capturing high-frequency signals with precision.
• 12-Bit Resolution: The 12-bit resolution provides a fine granularity of signal representation, ensuring accurate digital representation of analog inputs.
• Flexible Input Range: The EVM allows for various input range configurations, accommodating a wide range of signal amplitudes.
• Integrated Features: The ADC includes features such as a digital down-converter (DDC), which reduces data rates for ease of processing in digital systems.

Design and Connectivity

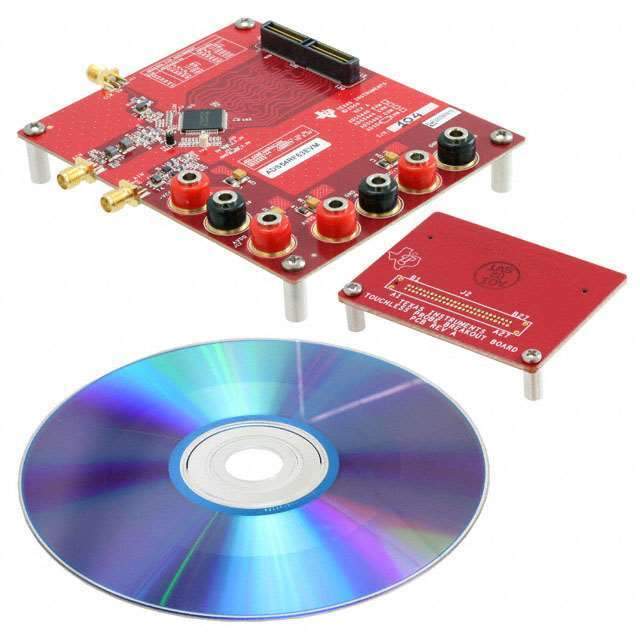

The ADS54RF63EVM is designed with user-friendliness in mind, featuring standard connectors for easy integration with test equipment and other systems. It includes an FMC (FPGA Mezzanine Card) connector, which allows for direct connection to compatible FPGA development boards for rapid prototyping and development.

Software Support and Resources

Texas Instruments provides comprehensive software support for the ADS54RF63EVM, including reference drivers and sample code to streamline the development process. Additionally, extensive documentation, application notes, and user guides are available to assist users in maximizing the potential of the ADC within their specific applications.

Applications

The ADS54RF63EVM is versatile and can be utilized in a range of applications, such as:

• Wireless infrastructure (e.g., base stations for mobile networks)
• Radar and satellite communication systems
• High-speed data acquisition systems
• Medical imaging equipment
• Test and measurement devices

In summary, the ADS54RF63EVM from Texas Instruments is a robust and flexible evaluation platform ideal for exploring the features of the ADS54RF63 ADC and developing advanced digital processing systems in high-speed signal environments.
