The CSD17575Q3T by Texas Instruments is a state-of-the-art N-channel NexFET™ power MOSFET designed for high-performance power conversion applications. This cutting-edge semiconductor device is engineered to deliver superior efficiency, reduced power losses, and enhanced thermal performance, making it an ideal choice for a wide range of electronic systems.

Key Features

• Low On-Resistance: The CSD17575Q3T boasts an ultra-low on-resistance (R_DS(on)) of just 2.9 mΩ at V_GS = 10 V, which significantly reduces conduction losses and improves overall efficiency.
• High Continuous Drain Current: With a continuous drain current (I_D) of 100 A, this MOSFET can handle high current applications with ease, ensuring reliable performance under demanding conditions.
• Optimized Gate Charge: The device features an optimized gate charge (Q_g) that minimizes driver losses and enables fast switching speeds, contributing to higher efficiency in power conversion circuits.

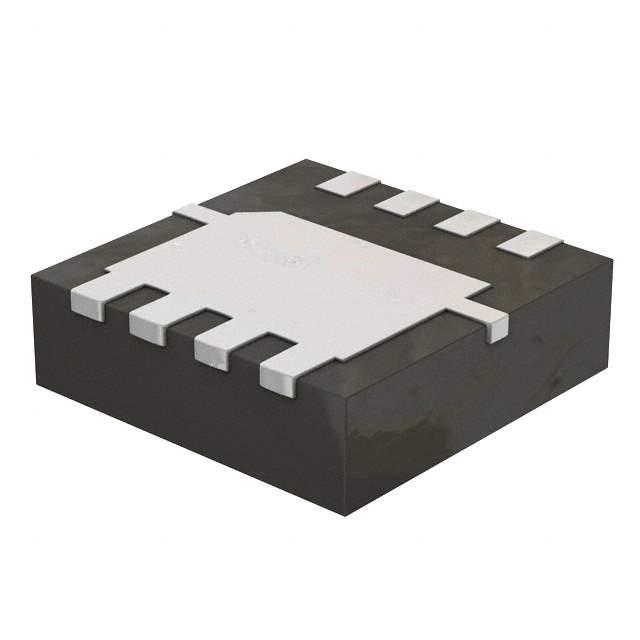

• Robust Thermal Management: The CSD17575Q3T is encapsulated in a compact SON 5mm x 6mm plastic package, which is designed for excellent thermal dissipation, ensuring the device operates within safe temperature ranges even under high power operation.
• Environmentally Friendly: This product is RoHS compliant and free from environmentally harmful substances, aligning with global environmental regulations and standards.

Applications

The versatile CSD17575Q3T is suitable for a broad array of applications, including:

• DC/DC Converters
• Motor Drives
• Power Supply Units
• Point-of-Load Modules
• Switch Mode Power Supplies (SMPS)

Quality and Reliability

As with all Texas Instruments products, the CSD17575Q3T is manufactured to the highest quality standards, ensuring reliability and performance consistency. Customers can trust in the robust design and rigorous testing that backs each device for use in their critical power management solutions.
